90 Deg Long Radius Elbow Manufacturer
90° Long Radius Elbow Manufacturer & Supplier, Global Supplier of ANSI B16.9 90° Long Radius Elbow, Manufacturer Of ASTM A403 SS 90° Long Radius Elbow, 90° Long Radius Elbow Dimensions, Nickel Alloy 200 90° Long Radius Elbow, Monel Buttweld 90° Long Radius Elbow, 304 SS 90° Long Radius Elbow, High Quality 90° Long Radius Elbow in Mumbai, India.
Stockist of Stainless Steel 90° Long Radius Elbow, Buttweld 90° Long Radius Elbow Fittings, Alloy Steel 90° Long Radius Elbow, Butt weld 90° Long Radius Elbow, Best Price of Duplex Steel 90° Long Radius Elbow Fittings, Butt Weld 90° Long Radius Elbow, 90° Long Radius Elbow Dealer in India, ASME B16.9 90° Long Radius Elbow.
Shankh Metals And Alloys Is An ISO: 9001:2008 Certified Company. We Are Manufacturer, Stockholder and Exporter of 90° Long Radius Elbow. We are proactive organization Specialist in Stainless Steel 90° Long Radius Elbow and Other Quality Products that meet and exceed customer`s specific requirements and thus ensure complete satisfaction. We are capable of providing a vast range of materials like Stainless Steel 90° Long Radius Elbow, Carbon Steel 90° Long Radius Elbow & Alloy Steel 90° Long Radius Elbow Pipe Fittings from stock, to suit your needs. We have great pleasure to introduce ourselves as one of the leading Stockists & Suppliers of 90° Long Radius Elbow, Copper Nickel 90° Long Radius Elbow, Hastelloy C22 90° Long Radius Elbow and Other Range of Pipe Fittings.
Alloy 20 Buttweld 90° Long Radius Elbow, Steel Butt weld 90° Long Radius Elbow Wholesaler, Stockholder Of 90° Long Radius Elbow, Inconel Buttweld 90° Long Radius Elbow, Copper Nickel 90° Long Radius Elbow Exporter, Hastelloy C22 90° Long Radius Elbow, 90° Long Radius Elbow Traders in India.
Table Of Content
- Best Offer On 90° Long Radius Elbow
- Standard Specification For Buttweld 90° Long Radius Elbow
- Material & Grades of Buttweld 90° Long Radius Elbow
- ASME B16.9 Buttweld 90° Long Radius Elbow Available Types
- Buttweld 90° Long Radius Elbow Dimension
- Buttweld 90° Long Radius Elbow Application
- Export Destinations For Buttweld 90° Long Radius Elbow
- Price List Of 90° Long Radius Elbow
90° Long Radius Elbow Manufacturer & Supplier In Mumbai

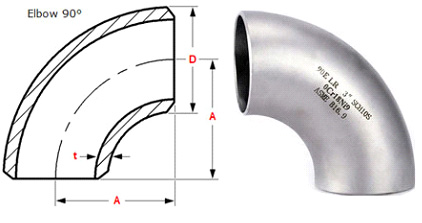

ANSI 16.9 90° Long Radius Elbow Dimensions
NPS |
O.D. |
90 degrees |
45 degrees |
90 degrees |
45 degrees |
1/2 |
21.3 |
38 |
16 |
- |
- |
3/4 |
26.7 |
38 |
19 |
57 |
24 |
1 |
33.4 |
38 |
22 |
76 |
31 |
1¼ |
42.2 |
48 |
25 |
95 |
39 |
1½ |
48.3 |
57 |
29 |
114 |
47 |
2 |
60.3 |
76 |
35 |
152 |
63 |
2½ |
73 |
95 |
44 |
190 |
79 |
3 |
88.9 |
114 |
51 |
229 |
95 |
3½ |
101.6 |
133 |
57 |
267 |
111 |
4 |
114.3 |
152 |
64 |
305 |
127 |
5 |
141.3 |
190 |
79 |
381 |
157 |
6 |
168.3 |
229 |
95 |
457 |
189 |
8 |
219.1 |
305 |
127 |
610 |
252 |
10 |
273 |
381 |
159 |
762 |
316 |
12 |
323.8 |
457 |
190 |
914 |
378 |
14 |
355.6 |
533 |
222 |
1067 |
441 |
16 |
406.4 |
610 |
254 |
1219 |
505 |
18 |
457 |
686 |
286 |
1372 |
568 |
20 |
508 |
762 |
318 |
1524 |
632 |
22 |
559 |
838 |
343 |
1676 |
694 |
24 |
610 |
914 |
381 |
1829 |
757 |
26 |
660 |
991 |
406 |
1981 |
821 |
28 |
711 |
1067 |
438 |
2134 |
883 |
30 |
762 |
1143 |
470 |
2286 |
964 |
32 |
813 |
1219 |
502 |
2438 |
1010 |
34 |
864 |
1295 |
533 |
2591 |
1073 |
36 |
914 |
1372 |
565 |
2743 |
1135 |
38 |
965 |
1448 |
600 |
2896 |
1200 |
40 |
1016 |
1524 |
632 |
3048 |
1264 |
42 |
1067 |
1600 |
660 |
3200 |
1326 |
44 |
1118 |
1676 |
695 |
3353 |
1389 |
46 |
1168 |
1753 |
727 |
3505 |
1453 |
48 |
1219 |
1829 |
759 |
3658 |
1516 |
ASME B16.9 90° Long Radius Elbow Dimensional Tolerance
| DIMENSIONAL TOLERANCES - ELBOWS | |||||||
| For all fittings | Elbows 90/45 deg | 180° Returns | |||||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to End Dim. A-B-C-M | Center to Center Dim. O |
Back to Face Dim. K |
Align- ment of Ends U |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | 7 | 7 | 1 |
| 3 a 3 1/2 | 1 | 1,6 | less | 2 | 7 | 7 | 1 |
| 4 | +2 -1 | 1,6 | than | 2 | 7 | 7 | 1 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | 7 | 7 | 1 |
| 8 | 2 | 1,6 | of nominal | 2 | 7 | 7 | 1 |
| 10 | +4 -3 | 3,2 | thickness | 2 | 7 | 7 | 2 |
| 12 a 18 | +4 -3 | 3,2 | 3 | 10 | 7 | 2 | |
| 20 a 24 | +6 -5 | 4,8 | 3 | 10 | 7 | 2 | |
| 26 a 30 | +7 -5 | 4,8 | 3 | ..... | ..... | ..... | |
| 32 a 48 | +7 -5 | 4,8 | 5 | ..... | ..... | ..... | |
| Angularity Tolerances | ||
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
Elbows Weight
| WEIGHTS OF FITTINGS | ||||||||
| NPS inches |
ELBOWS LR 90° |
ELBOWS SR 90° |
||||||
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.05 | 0.06 | 0.08 | 0.10 | 0.03 | 0.04 | 0.05 | 0.07 |
| 3/4 | 0.06 | 0.07 | 0.09 | 0.11 | 0.04 | 0.05 | 0.06 | 0.07 |
| 1 | 0.09 | 0.15 | 0.18 | 0.20 | 0.06 | 0.10 | 0.12 | 0.13 |
| 1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 | 0.09 | 0.13 | 0.17 | 0.12 |
| 1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 | 0.12 | 0.20 | 0.27 | 0.33 |
| 2 | 0.30 | 0.50 | 0.70 | 0.90 | 0.20 | 0.33 | 0.47 | 0.60 |
| 2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 | 0.40 | 0.60 | 0.90 | 1.20 |
| 3 | 0.90 | 1.30 | 2.00 | 2.90 | 0.60 | 0.90 | 1.35 | 1.90 |
| 4 | 1.40 | 2.00 | 4.00 | 5.90 | 0.90 | 1.35 | 2.65 | 3.90 |
| 5 | 2.90 | 3.60 | 6.50 | 9.70 | 1.95 | 2.40 | 4.35 | 6.50 |
| 6 | 4.00 | 5.00 | 10.5 | 16.0 | 2.70 | 3.35 | 7.00 | 10.5 |
| 8 | 7.40 | 10.0 | 21.5 | 33.5 | 4.90 | 6.70 | 14.5 | 22.5 |
| 10 | 13.6 | 16.8 | 38.5 | 52.5 | 9.10 | 11.2 | 25.6 | 35.0 |
| 12 | 23.4 | 27.0 | 59.0 | 79.0 | 15.6 | 18.0 | 39.5 | 53.0 |
| 14 | 29.0 | 35.0 | 70.0 | 94.0 | 19.3 | 23.5 | 47.0 | 63.0 |
| 16 | 41.3 | 47.0 | 95.0 | 125 | 27.5 | 31.5 | 63.5 | 84.0 |
| 18 | 51.8 | 59.0 | 120 | 158 | 34.5 | 39.5 | 80.0 | 105 |
| 20 | 73.0 | 85.0 | 146 | 194 | 49.0 | 57.0 | 98.0 | 129 |
| 24 | 122 | 140 | 210 | 282 | 82.0 | 94.0 | 140 | 188 |
| Approximate weights in kg, density 8 kg/dm3 | ||||||||
Standard Specification For Buttweld 90° Long Radius Elbow
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2"NB TO 48"NB IN
Type : Welded / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form : 90° Long Radius Elbow, Butt weld 90° Long Radius Elbow.
Material & Grades of Buttweld 90° Long Radius Elbow :
Stainless Steel Buttweld 90° Long Radius Elbow :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld 90° Long Radius Elbow :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Buttweld 90° Long Radius Elbow :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Buttweld 90° Long Radius Elbow : ASTM A420 WPL3, A420 WPL6
Alloy Steel Buttweld 90° Long Radius Elbow :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Buttweld 90° Long Radius Elbow :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
ASME B16.9 Buttweld 90° Long Radius Elbow Available Types
| Buttweld 90° Long Radius Elbow | Butt Weld B16.9 90° Long Radius Elbow |
| ASME B16.9 Butt weld 90° Long Radius Elbow | Steel 90° Long Radius Elbow |
| Stainless Steel 90° Long Radius Elbow Suppliers | SS 90° Long Radius Elbow |
| ANSI B16.9 Buttweld 90° Long Radius Elbow Dealer | ASME B16.28 Buttweld 90° Long Radius Elbow Exporter |
| Welded Butt weld 90° Long Radius Elbow Stockholder | Seamless Butt weld 90° Long Radius Elbow Distributors |
| Carbon Steel 90° Long Radius Elbow | High Quality 90° Long Radius Elbow Manufacturer |
| ASTM A403 Stainless Steel 90° Long Radius Elbow | Duplex Steel Buttweld 90° Long Radius Elbow |
| Super Duplex Steel Buttweld 90° Long Radius Elbow | Copper Nickel 90° Long Radius Elbow |
| High Nickel Alloy 90° Long Radius Elbow | Hastelloy 90° Long Radius Elbow Stockist |
| Titanium Buttweld 90° Long Radius Elbow | Inconel Butt weld 90° Long Radius Elbow |
Application of Stainless Steel Buttweld Fittings
- Industrial Boilers
- Power Plants
- Nuclear Plants
- Oil & Gas Industry
- Refineries
- Ship Building
- Heat Exchangers
- Condensers
- Paper & Pulp
- Marine Applications
- Nuclear Power
- Fossil Fuel Power Plants
Price List Of Elbow :
90 Short Radius elbow
FOB Price: US $0.5-6 / Piece
short radius sch40 180 Degree elbows
FOB Price: US $1.2-2500 / Piece
45 D Short Radius ELBOW
FOB Price: US $1-5000 / Piece
45 short radius elbow
FOB Price: US $0.11-999 / Piece
Pipe Fittings 180 degree Short Radius elbow
FOB Price: US $0.2-50 / Piece
180 short radius elbow
FOB Price: US $0.2-500 / Piece
1d elbow
FOB Price: US $1.2-2500 / Piece
1.5D Elbow
FOB Price: US $0.1-650 / Piece
180 Degree 3d elbow
FOB Price: US $0.11-1 / Piece
5d radius elbows
FOB Price: US $1-1000 / Piece
stainless steel Elbow 45,90,180 SR/SR
FOB Price: US $500-1000 / Ton
steel butt welding pipe elbow
FOB Price: US $8-8000 / Piece
180 Buttweld Return Bend
FOB Price: US $500-600 / Piece
butt-welding straight tees and crosses
FOB Price: US $1-100 / Piece
Reducing Outlet Tees/Unequal Tees
FOB Price: US $1-99 / Piece
Equal Tee
FOB Price: US $0.5-500 / Piece
Reducing Tee
FOB Price: US $0.25-6.25 / Piece
Stainless steel equal cross
FOB Price: US $1000-2000 / Ton
Reducing Cross
FOB Price: US $1-5000 / Piece
Reducer stainless steel pipe fittings ANSI B16.9
FOB Price: US $1-1000 / Piece
asme b16.9 concentric reducer
FOB Price: US $10-1000 / Piece
asme b16.9 eccentric reducer sch40
FOB Price: US $1-10000 / Ton
Stub End stainless steel pipe fittings ANSI ASME B16.9
FOB Price: US $1-1000 / Piece
Lap Joint Stub End(wp304,wp304l,wp316,wp316l,wp316ti,wp317l,wp321,wp347)
FOB Price: US $1-1000 / Piece
seamless stainless steel pipe long Stub End
FOB Price: US $0.1-9.9 / Piece
Stainless Steel Short Stubend
FOB Price: US $5-100 / Kilogram
ASME B16.9 Pipe Cap
FOB Price: US $1-1000 / Ton
Carbon steel cap/Forged Pipe fittings/butt welded end cap
FOB Price: US $0.1-10 / Piece
collar pipe fittings
FOB Price: US $0.8-4 / Piece
Swedge Nipple
FOB Price: US $1-30 / Piece
Pipe Nipples
FOB Price: US $0.1-100 / Piece
Barrel Nipple
FOB Price: US $1-999999 / Piece
Reducing Nipple
FOB Price: US $1-1200 / Piece
3D 5D 7D 9D Carbon Steel Pipe Fitting Butt Weld Bend
FOB Price: US $1.01-668.8 / Piece
carbon Steel Short Radius Bend in pipe fittings
FOB Price: US $1-1000 / Piece
Piggable Bend
FOB Price: US $0.5-10000 / Piece
pipe fittings laterals
FOB Price: US $0.5-89 / Piece
| Best Offer On Below Stock : | ||||
|
|
|
||
