45 Deg Long Radius Elbow Manufacturer

45° Long Radius Elbow Manufacturer & Supplier, Global Supplier of ANSI B16.9 45° Long Radius Elbow, Manufacturer Of ASTM A403 SS 45° Long Radius Elbow, 45° Long Radius Elbow Dimensions, Nickel Alloy 200 45° Long Radius Elbow, Monel Buttweld 45° Long Radius Elbow, 304 SS 45° Long Radius Elbow, High Quality 45° Long Radius Elbow in Mumbai, India.

Stockist of Stainless Steel 45° Long Radius Elbow, Buttweld 45° Long Radius Elbow Fittings, Alloy Steel 45° Long Radius Elbow, Butt weld 45° Long Radius Elbow, Best Price of Duplex Steel 45° Long Radius Elbow Fittings, Butt Weld 45° Long Radius Elbow, 45° Long Radius Elbow Dealer in India, ASME B16.9 45° Long Radius Elbow.

ASME B16.9 Buttweld 45° Long Radius Elbow Manufacturer

Shankh Metals And Alloys Is An ISO: 9001:2008 Certified Company. We Are Manufacturer, Stockholder and Exporter of 45° Long Radius Elbow. We are proactive organization Specialist in Stainless Steel 45° Long Radius Elbow and Other Quality Products that meet and exceed customer`s specific requirements and thus ensure complete satisfaction. We are capable of providing a vast range of materials like Stainless Steel 45° Long Radius Elbow, Carbon Steel 45° Long Radius Elbow & Alloy Steel 45° Long Radius Elbow Pipe Fittings from stock, to suit your needs. We have great pleasure to introduce ourselves as one of the leading Stockists & Suppliers of 45° Long Radius Elbow, Copper Nickel 45° Long Radius Elbow, Hastelloy C22 45° Long Radius Elbow and Other Range of Pipe Fittings.

Alloy 20 Buttweld 45° Long Radius Elbow, Steel Butt weld 45° Long Radius Elbow Wholesaler, Stockholder Of 45° Long Radius Elbow, Inconel Buttweld 45° Long Radius Elbow, Copper Nickel 45° Long Radius Elbow Exporter, Hastelloy C22 45° Long Radius Elbow, 45° Long Radius Elbow Traders in India.

Table Of Content

ASME B16.9 Buttweld 45° Long Radius Elbow Dimensions

45° Long Radius Elbow Manufacturer & Supplier In Mumbai

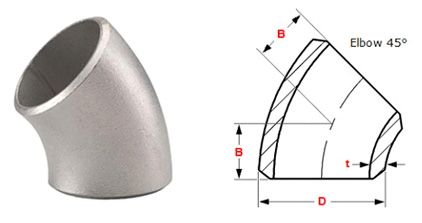

ANSI 16.9 45° Long Radius Elbow Dimensions

NPS

O.D.
D

90 degrees
Long Radius
Center-to-End
A

45 degrees
Long Radius
Center-to-End
B

90 degrees
3D
Center-to-End
A

45 degrees
3D
Center-to-End
B

1/2

21.3

38

16

-

-

3/4

26.7

38

19

57

24

1

33.4

38

22

76

31

1¼

42.2

48

25

95

39

1½

48.3

57

29

114

47

2

60.3

76

35

152

63

2½

73

95

44

190

79

3

88.9

114

51

229

95

3½

101.6

133

57

267

111

4

114.3

152

64

305

127

5

141.3

190

79

381

157

6

168.3

229

95

457

189

8

219.1

305

127

610

252

10

273

381

159

762

316

12

323.8

457

190

914

378

14

355.6

533

222

1067

441

16

406.4

610

254

1219

505

18

457

686

286

1372

568

20

508

762

318

1524

632

22

559

838

343

1676

694

24

610

914

381

1829

757

26

660

991

406

1981

821

28

711

1067

438

2134

883

30

762

1143

470

2286

964

32

813

1219

502

2438

1010

34

864

1295

533

2591

1073

36

914

1372

565

2743

1135

38

965

1448

600

2896

1200

40

1016

1524

632

3048

1264

42

1067

1600

660

3200

1326

44

1118

1676

695

3353

1389

46

1168

1753

727

3505

1453

48

1219

1829

759

3658

1516

ASME B16.9 45° Long Radius Elbow Dimensional Tolerance

DIMENSIONAL TOLERANCES - ELBOWS
For all fittings Elbows 90/45 deg 180° Returns
Nominal Pipe Size (NPS) Outside Ø
at Bevel		 Inside Ø
at End		 Wall Thickness
t / t1		 Center to End Dim. A-B-C-M Center to Center Dim.
O		 Back to Face Dim.
K		 Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 tickness 2 7 7 2
12 a 18 +4 -3 3,2 3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 ..... ..... .....
32 a 48 +7 -5 4,8 5 ..... ..... .....



Angularity Tolerances
ND Max off angle Max off plane
Q P
1/2 a 4 1 2
5 a 8 2 4
10 a 12 3 5
14 a 16 3 7
18 a 24 4 10
26 a 30 5 10
32 a 42 5 13
44 a 48 5 20
Standard Specification For Buttweld 45° Long Radius Elbow

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/2"NB TO 48"NB IN

Type : Welded / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : 45° Long Radius Elbow, Butt weld 45° Long Radius Elbow.

Material & Grades of Buttweld 45° Long Radius Elbow :

Stainless Steel Buttweld 45° Long Radius Elbow :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld 45° Long Radius Elbow :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld 45° Long Radius Elbow :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld 45° Long Radius Elbow : ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld 45° Long Radius Elbow :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld 45° Long Radius Elbow :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

ASME B16.9 Buttweld 45° Long Radius Elbow Available Types
Buttweld 45° Long Radius Elbow Butt Weld B16.9 45° Long Radius Elbow
ASME B16.9 Butt weld 45° Long Radius Elbow Steel 45° Long Radius Elbow
Stainless Steel 45° Long Radius Elbow Suppliers SS 45° Long Radius Elbow
ANSI B16.9 Buttweld 45° Long Radius Elbow Dealer ASME B16.28 Buttweld 45° Long Radius Elbow Exporter
Welded Butt weld 45° Long Radius Elbow Stockholder Seamless Butt weld 45° Long Radius Elbow Distributors
Carbon Steel 45° Long Radius Elbow High Quality 45° Long Radius Elbow Manufacturer
ASTM A403 Stainless Steel 45° Long Radius Elbow Duplex Steel Buttweld 45° Long Radius Elbow
Super Duplex Steel Buttweld 45° Long Radius Elbow Copper Nickel 45° Long Radius Elbow
High Nickel Alloy 45° Long Radius Elbow Hastelloy 45° Long Radius Elbow Stockist
Titanium Buttweld 45° Long Radius Elbow Inconel Butt weld 45° Long Radius Elbow
Application of Stainless Steel Buttweld Fittings
  1. Industrial Boilers
  2. Power Plants
  3. Nuclear Plants
  4. Oil & Gas Industry
  5. Refineries
  6. Ship Building
  7. Heat Exchangers
  8. Condensers
  9. Paper & Pulp
  10. Marine Applications
  11. Nuclear Power
  12. Fossil Fuel Power Plants
Price List Of Elbow :
