ASME B16.9 Buttweld Long Stub End Dimensions

Long Stub End Manufacturer & Supplier In Mumbai

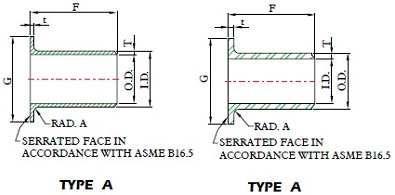

STUB ENDS – Ansi and MSS SP-43 dimensions

STUB ENDS – ANSI B 16.9 and MSS SP-43 dimension
inches ND mm Diameter of lap

Radius of fillet

 Length F

 D

 G R R1 MSS SP43 ANSI B16.9
1/2 15 21,34 34,92 3,17 0,80 50,80 76,20
3/4 20 26,67 42,86 3,17 0,80 50,80 76,20
1 25 33,40 50,80 3,17 0,80 50,80 101,60
1 1/4 32 42,16 63,50 4,76 0,80 50,80 101,60
1 1/2 40 48,26 73,00 6,35 0,80 50,80 101,60
2 50 60,32 92,10 7,93 0,80 63,50 152,40
2 1/2 65 73,02 104,80 7,93 0,80 63,50 152,40
3 80 88,90 127,00 9,52 0,80 63,50 152,40
3 1/2 90 101,60 139,70 9,52 0,80 76,20 152,40
4 100 114,30 157,20 11,11 0,80 76,20 152,40
5 125 141,30 185,70 11,11 1,58 76,20 203,20
6 150 168,27 215,90 12,70 1,58 88,90 203,20
8 200 219,07 269,80 12,70 1,58 101,60 203,20
10 250 273,05 323,80 12,70 1,58 127,00 254,00
12 300 323,85 381,00 12,70 1,58 152,40 254,00
14 350 355,60 412,70 12,70 1,58 152,40 304,80
16 400 406,40 469,90 12,70 1,58 152,40 304,80
18 450 457,20 533,40 12,70 1,58 152,40 304,80
20 500 508,00 584,20 12,70 1,58 152,40 304,80
22 550 558,80 641,30 12,70 1,58 152,40 304,80
24 600 609,60 692,10 12,70 1,58 152,40 304,80
The lap thickness T shall not be less than nominal pipe wall thickness t
STUB ENDS – Weights
NPS
inches		 STUB ENDS
Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S
1/2 0.06 0.08 0.12 0.13
3/4 0.07 0.09 0.15 0.17
1 0.09 0.15 0.20 0.25
1 1/4 0.13 0.20 0.30 0.35
1 1/2 0.16 0.25 0.38 0.46
2 0.25 0.40 0.55 0.75
2 1/2 0.35 0.50 0.80 1.00
3 0.50 0.60 1.10 1.50
4 0.70 1.00 1.80 2.50
5 1.00 1.25 2.50 3.50
6 1.60 1.95 3.70 5.50
8 2.50 3.10 5.90 10.0
10 4.00 4.90 10.5 14.0
12 6.60 7.10 15.0 20.0
14 6.40 7.80 15.5 20.5
16 7.90 9.00 18.0 24.0
18 9.30 10.5 21.0 28.0
20 12.0 13.5 23.5 31.0
24 16.5 19.0 28.5 38.0
Approximate weights in kg, density 8 kg/dm3

Standard Specification For Buttweld Long Stub End

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/2"NB TO 36 "NB IN

Type : Seamless / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : Long Stub Ends, Pipe Stub Ends, Butt weld Long Stub Ends.

Material & Grades of Buttweld Long Stub End :

Stainless Steel Buttweld Long Stub End :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld Long Stub End :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld Long Stub End :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld Long Stub End : ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld Long Stub End :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld Long Stub End :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
