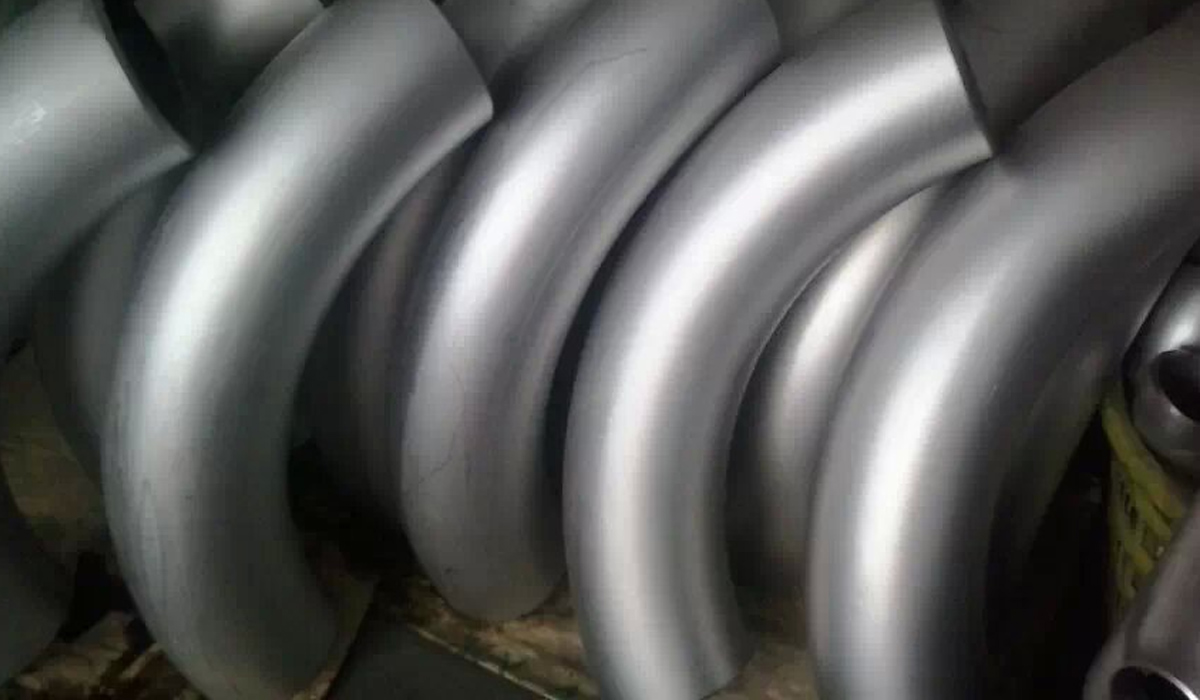

ASME B16.9 Long Radius Bend Manufacturer

Shankh Metals And Alloys Is An ISO: 9001:2008 Certified Company.We Manufacturer Our Products By High Grade Material To Provide Good Quality Long Radius Bend To Our Domestic And Overseas Customers. Bends accomplish a Lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency products like Stainless Steel Long Radius Bend, Carbon Steel Long Radius Bend & Alloy Steel Long Radius Bend. These products are used in various commercial, industrial and automobile industries. We manufacture ANSI B16.9 Lond Radius Bend using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.We are one of the top Manufacturers and Suppliers of ASME B16.9 Long Radius Bend in Mumbai, India.

Inconel Buttweld Long Radius Bend, Long Radius Bend Buttweld, Stockholder Of Long Radius Pipe Bend, Best Price of Duplex Steel Long Radius Bend, Hastelloy C22 Long Radius Bends, Copper Nickel Long Radius Bends Exporter, Alloy 20 Long Radius Bend Traders in India.

Table Of Content

Standard Specification Of Long Radius Bend

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 2"NB TO 18" NB

Type : Seamless / ERW / Welded / Fabricated

Bend Radii : 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm

Bending Radius(R): R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Bending angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°

Standard Sizes Of Long Radius Pipe Bend/ LR Pipe Bend

Nominal
Pipe Size		 Outside
Diameter		 Inside
Diameter		 Wall
Thickness		 Center
To End		 Pipe
Schedule		 Weight
Pounds
1/2 0.84 0.622 0.109 1.5 40 0.16
3/4 1.05 0.824 0.113 1.5 40 0.17
1 1.32 1.049 0.133 1.5 40 0.4
1 1/4 1.66 1.38 0.14 1.88 40 0.55
1 1/2 1.9 1.61 0.145 2.25 40 0.8
2 2.38 2.07 0.154 3 40 1.6
2 1/2 2.88 2.47 0.203 3.75 40 3.2
3 3.5 3.07 0.216 4.5 40 4.8
3 1/2 4 3.55 0.226 5.25 40 6.6
4 4.5 4.03 0.237 6 40 8.9
5 5.56 5.05 0.258 7.5 40 15.1
6 6.62 6.07 0.28 9 40 24
8 8.62 7.98 0.322 12 40 47.8
10 10.75 10.02 0.365 15 40 83.4
12 12.75 12 0.375 18 * 123
14 14 13.25 0.375 21 30 155
16 16 15.25 0.375 24 30 206
18 18 17.25 0.375 27 * 262
20 20 19.25 0.375 30 20 324
24 24 23.25 0.375 36 20 466
30 30 29.25 0.375 45 * 720
36 36 35.25 0.375 54 * 1,039
42 42 41.25 0.375 63 * 1,420
48 48 47.25 0.375 72 * 2,000

Extra Strong Size Of Long Radius Pipe Bend/ LR Pipe Bend

Nominal
Pipe Size		 Outside
Diameter		 Inside
Diameter		 Wall
Thickness		 Center
To End		 Pipe
Schedule		 Weight
Pounds
1/2 0.84 0.546 0.147 1.5 80 0.26
3/4 1.05 0.742 0.154 1.5 80 0.29
1 1.32 0.957 0.179 1.5 80 0.48
1 1/4 1.66 1.27 0.191 1.88 80 0.79
1 1/2 1.9 1.5 0.2 2.25 80 1.2
2 2.37 1.93 0.218 3 80 2.1
2 1/2 2.88 2.32 0.276 3.75 80 3.8
3 3.5 2.9 0.3 4.5 80 6.3
3 1/2 4 3.36 0.318 5.25 80 8.6
4 4.5 3.82 0.337 6 80 12.5
5 5.56 4.81 0.375 7.5 80 21.2
6 6.63 5.76 0.432 9 80 34.4
8 8.63 7.63 0.5 12 80 71.3
10 10.75 9.75 0.5 15 60 111
12 12.75 11.75 0.5 18 * 158
14 14 13 0.5 21 * 201
16 16 15 0.5 24 40 270
18 18 17 0.5 27 * 348
20 20 19 0.5 30 30 422
24 24 23 0.5 36 * 604
30 30 29 0.5 45 20 997
36 36 35 0.5 54 20 1,380
42 42 41 0.5 63 * 1,880
48 48 47 0.5 72 * 2,502
Material & Grades of Long Radius Bend :

Stainless Steel Long Radius Bend :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Long Radius Bend :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Long Radius Bend :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Long Radius Bend : ASTM A420 WPL3, A420 WPL6

Alloy Steel Long Radius Bend :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Long Radius Bend :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.

ASME B16.9 Long Radius Bend Available Types
Buttweld Long Radius Bend Butt Weld Long Radius Pipe Bends
ASME B16.9 Long Radius Bend 90 Degree Long Radius Bend
Stainless Steel Long Radius Bend Suppliers SS Long Radius Bends
ANSI B16.9 Long Radius Pipe Bend Dealer ASME B16.28 Buttweld Long Radius Bend Exporter
Welded Long Radius Bend Stockholder Seamless Long Radius Bend Distributors
Carbon Steel Long Radius Bends High Quality Long Radius Bend Manufacturer
ASTM A403 Stainless Steel Long Radius Bends Duplex Steel Long Radius Bends
Super Duplex Steel Long Radius Bend Copper Nickel Long Radius Bends
High Nickel Alloy Long Radius Bend Hastelloy Long Radius Bend Stockist
Titanium Long Radius Bend Inconel Butt weld Long Radius Bend
ANSI B16.90 Long Radius Bend Application
  1. Industrial Boilers
  2. Power Plants
  3. Nuclear Plants
  4. Oil & Gas Industry
  5. Refineries
  6. Ship Building
  7. Heat Exchangers
  8. Condensers
  9. Paper & Pulp
  10. Marine Applications
  11. Nuclear Power
  12. Fossil Fuel Power Plants
