Standard Specification For API Flanges :
- Type: slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange(loose flange), socket welded flange, Orifice Flanges, long welded neck flange
- Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
- Standard: ANSI/ASME B16.47 Ser.A, MSS SP-44 Flange
- Size: 26 inch to 48 inch
- Pressure: As Per MSS SP-44 Flange
- Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
- Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
- E-catalogue: Available , please visit catalogue of flange
- Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
Manufacturing Standards Of API Flangess :
Stainless Steel API Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel API Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel API Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel API Flanges : ASTM A350, LF2, LF3
Alloy Steel API Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel API Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy API Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Types Of API Flanges :
| API Forged Flanges | API High Hub Blinds Flanges |
| API Blind Flanges | API Spectacle Blinds Flanges |
| API Reducing Flanges | API Loose Flanges |
| API Orifice Flanges | API RTJ Flanges |
| API Socket Weld Flanges | API Screwed Flanges |
| API Slip On Flanges | API Weld Neck Flanges |
| API Flat Flanges | API Flange Facing Type & Finish |
| API Lapped Joint Flanges | API SORF Flanges |
| API SWRF Flanges | API Groove & Tongue Flanges |
| API Square Flanges | API Long Neck Weld Flanges |
| API Threaded Flanges | API Spades Ring Spacers Flanges |
| API Weld Neck Flanges Series A or B | API Ring Type Joint Flanges |
| API WNRF Flanges | API Weldo / Nipo Flanges |
| API Expander Flanges |
API Flange, API 6A Flange Dimensions
| Flange Size | Working Pressure (PSI) | Outside Diameter | Number of Bolt Holes | Diameter of Bolt Holes | Length of Bolts | API Ring Gasket |
|---|---|---|---|---|---|---|
| 1-13/16" | 10,000 | 7-3/8" | 8 | 3/4" | 5-1/4" | BX-151 |
| 1-13/16" | 15,000 | 8-3/16" | 8 | 7/8" | 6" | BX-151 |
| 1-13/16" | 20,000 | 10-1/8" | 8 | 1" | 7-3/4" | BX-151 |
| 2-1/16" | 2,000 | 6-1/2" | 8 | 5/8" | 5/8" | R-23 |
| 2-1/16" | 3,000/5,000 | 8-1/2" | 8 | 7/8" | 7/8" | R-24 |
| 2-1/16" | 10,000 | 7-7/8" | 8 | 3/4" | 3/4" | BX-152 |
| 2-1/16" | 15,000 | 8-3/4" | 8 | 7/8" | 7/8" | BX-152 |
| 2-1/16" | 20,000 | 11-5/16" | 8 | 1-1/8" | 1-1/8" | BX-152 |
| 2-9/16" | 2,000 | 7-1/2" | 8 | 3/4" | 5-1/4" | R-26 |
| 2-9/16" | 3,000/5,000 | 9-5/8" | 8 | 1" | 7" | R-27 |
| 2-9/16" | 10,000 | 9-1/8" | 8 | 7/8" | 6-1/4" | BX-153 |
| 2-9/16" | 15,000 | 10" | 8 | 1" | 7" | BX-153 |
| 2-9/16" | 20,000 | 12-13/16" | 8 | 1-1/4" | 9-1/2" | BX-153 |
| 3-1/8" | 2,000 | 8-1/4" | 8 | 3/4" | 5-1/2" | R-31 |
| 3-1/8" | 3,000 | 9-1/2" | 8 | 7/8" | 6-1/4" | R-31 |
| 3-1/8" | 5,000 | 10-1/2" | 8 | 1-1/8" | 7-3/4" | R-35 |
| 3-1/16" | 10,000 | 10-5/8" | 8 | 1" | 7-1/4" | BX-154 |
| 3-1/16" | 15,000 | 11-5/16" | 8 | 1-1/8" | 8" | BX-154 |
| 3-1/16" | 20,000 | 14-1/16" | 8 | 1-3/8" | 10-3/4" | BX-154 |
| 4-1/16" | 2,000 | 10-3/4" | 8 | 7/8" | 6-1/4" | R-37 |
| 4-1/16" | 3,000 | 11-1/2" | 8 | 1-1/8" | 7-1/2" | R-37 |
| 4-1/16" | 5,000 | 12-1/4" | 8 | 1-1/8" | 8-3/8" | BX-155 |
| 4-1/16" | 20,000 | 17-9/16" | 8 | 1-3/4" | 12-3/4" | BX-155 |
| 5-1/8" | 5,000 | 14-3/4" | 8 | 1-1/2" | 10-3/4" | R-44 |
| 7-1/16" | 2,000 | 14" | 12 | 1" | 7-1/2" | R-45 |
| 7-1/16" | 3,000 | 15" | 12 | 1-1/8" | 8-1/2" | R-45 |
| 7-1/16" | 5,000 | 15-1/2" | 12 | 1-3/8" | 11-1/4" | R-46 |
| 7-1/16" | 10,000 | 18-7/8" | 12 | 1-1/2" | 11-3/4" | BX-156 |
| 7-1/16" | 15,000 | 19-7/8" | 16 | 1-1/2" | 13" | BX-156 |
| 7-1/16" | 20,000 | 24-13/16" | 16 | 2" | 17-3/4" | BX-156 |
| 9" | 2,000 | 16-1/2" | 12 | 1-1/8" | 8-1/2" | R-49 |
| 9" | 3,000 | 18-1/2" | 12 | 1-3/8" | 9-1/2" | R-49 |
| 9" | 5,000" | 19" | 12 | 1-5/8" | 12-1/2" | R-50 |
| 9" | 10,000 | 21-3/4" | 16 | 1-1/2" | 13-1/4" | BX-157 |
| 9" | 15,000 | 25-1/2" | 16 | 1-7/8" | 16" | BX-157 |
| 11" | 2,000 | 20" | 16 | 1-1/4" | 9-1/4" | R-53 |
| 11" | 3,000 | 21-1/2" | 16 | 1-3/8" | 10" | R-53 |
| 11" | 5,000 | 23" | 12 | 1-7/8" | 14-1/4" | R-54 |
| 11" | 10,000 | 25-3/4" | 16 | 1-3/4" | 15-3/8" | BX-158 |
| 11" | 15,000 | 32" | 20 | 2" | 19-1/2" | BX-158 |
| 13-5/8" | 2,000 | 22" | 20 | 1-1/4" | 9-1/2" | R-57 |
| 13-5/8" | 3,000 | 24" | 20 | 1-3/8" | 10-3/4" | R-57 |
| 13-5/8" | 5,000 | 26-1/2" | 16 | 1-5/8" | 12-3/4" | BX-160 |
| 13-5/8" | 10,000 | 30-1/4" | 20 | 1-7/8" | 17-3/4" | BX-159 |
| 13-5/8" | 15,000 | 34-7/8" | 20 | 2-1/4" | 21" | BX-159 |
| 16-3/4" | 2,000 | 27" | 20 | 1-1/2" | 10-3/4" | R-65 |
| 16-3/4" | 3,000 | 27-3/4" | 20 | 1-5/8" | 12-1/4" | R-66 |
| 16-3/4" | 5,000 | 30-3/8" | 16 | 1-78" | 14-3/4" | BX-162 |
| 16-3/4" | 10,000 | 34-5/16" | 24 | 1-7/8" | 17-3/4" | BX-162 |
| 18-3/4" | 5,000 | 35-5/8" | 20 | 2" | 18" | BX-163 |
| 16-3/4" | 10,000 | 40-15/16" | 24 | 2-1/4" | 23" | BX-164 |
| 20-3/4" | 3,000 | 33-3/4" | 20 | 2" | 15-1/4" | R-74 |
| 21-1/4" | 2,000 | 32" | 24 | 1-5/8" | 12-1/2" | R-73 |
| 21-1/4" | 5,000 | 39" | 24 | 2" | 19" | BX-165 |
| 21-1/4" | 10,000 | 45" | 24 | 2-1/2" | 24-3/4" | BX-166 |
| 26-3/4" | 2,000 | 41" | 20 | 1-3/4" | 14-1/4" | BX-167 |
| 21-1/4" | 3,000 | 43-3/8" | 24 | 2" | 17-1/2" | BX-168 |

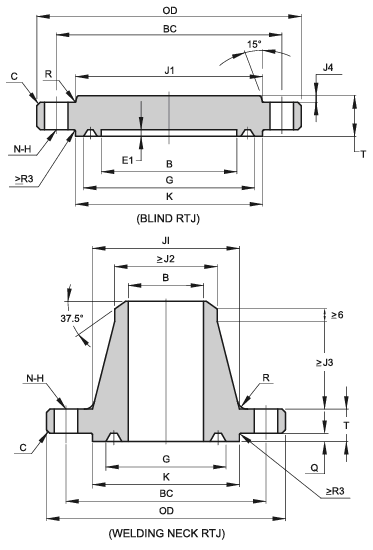

API 6A Type 6BX 15000PSI Blind / Welding Neck Flange
we are supplier of API 6A flanges like 15000PSI(103.5MPA) API 6A type 6BX blind/Welding Neck Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI (13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI (69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 15000PSI(103.5MPA) type 6BX blind/Welding Neck API 6A Flange
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | Ring Number |
| 1 13/16" | 46.8 | 210 | 3 | - | 5.56 | 77.77 | 106 | 45.3 | 97.6 | 71.4 | 47.6 | - | 10 | 160.3 | 8 | 26 | 151 |
| 2 1/16" | 53.2 | 220 | 3 | - | 5.95 | 86.23 | 114 | 50.8 | 111.1 | 82.5 | 54 | - | 10 | 174.6 | 8 | 26 | 152 |
| 2 9/16" | 65.9 | 255 | 3 | - | 6.75 | 102.77 | 133 | 57.2 | 128.6 | 100 | 57.1 | - | 10 | 200 | 8 | 29 | 153 |
| 3 1/16" | 78.6 | 290 | 3 | - | 7.54 | 119 | 154 | 64.3 | 154 | 122.2 | 63.5 | - | 10 | 230.2 | 8 | 32 | 154 |
| 4 1/16" | 104 | 360 | 3 | - | 8.33 | 150.62 | 194 | 78.6 | 195.3 | 158.7 | 73 | - | 10 | 290.5 | 8 | 39 | 155 |
| 5 1/8" | 131 | 420 | 3 | 9.5 | 9.53 | 176.66 | 225 | 98.5 | 244.5 | 200 | 81.8 | 6.4 | 16 | 342.9 | 12 | 42 | 169 |
| 7 1/16" | 180.2 | 505 | 6 | 11.1 | 11.11 | 241.83 | 305 | 119.1 | 325.4 | 276.2 | 92.1 | 7.9 | 16 | 428.6 | 16 | 42 | 156 |
| 9 " | 229.4 | 650 | 6 | 12.7 | 12.7 | 299.06 | 381 | 146.1 | 431.8 | 349.2 | 123.8 | 14.2 | 16 | 552.4 | 16 | 51 | 157 |
| 11" | 280.2 | 815 | 6 | 14.3 | 14.29 | 357.23 | 454 | 187.4 | 584.2 | 427 | 235.7 | 12.7 | 16 | 711.2 | 20 | 54 | 158 |
| 13 5/8" | 346.9 | 885 | 6 | 15.9 | 15.88 | 432.64 | 541 | 204.8 | 595.3 | 528.6 | 114.3 | 17.5 | 25 | 771.5 | 20 | 61 | 159 |
| 18 3/4" | 477 | 1160 | 6 | 18.3 | 18.26 | 577.9 | 722 | 255.6 | 812.8 | 730.2 | 155.6 | 35.1 | 25 | 1016 | 20 | 80 | 164 |
1. RING NUMBER BX, 2. C should be the max value 3. Tolerance and Ring Gasket according to API 6A-20TH

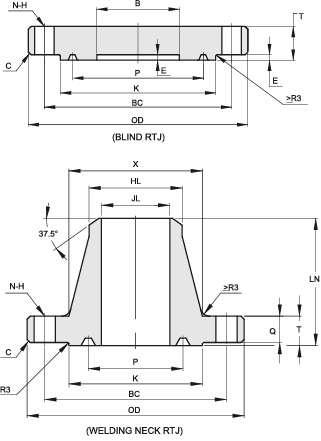

API 6A Type 6B 2000PSI Blind / Welding Neck Flange
We are supplier of API 6A flanges like 2000PSI(13.8MPA) API 6A type 6B Welding Neck Flange Blind Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI(13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 2000PSI (13.8MPA) type 6B Blind and Welding Neck API 6A Flange
| Size | B | OD | C | K | P | E | T | Q | X | BC | N | H | LN | HL | JL | R/RX |
| 2 1/16" | 53.2 | 165 | 3 | 108 | 82.55 | 7.9 | 33.4 | 25.4 | 84 | 127 | 8 | 20 | 81 | 60.3 | 53.3 | 23 |
| 2 9/16" | 65.9 | 190 | 3 | 127 | 101.6 | 7.9 | 36.6 | 28.6 | 100 | 149.2 | 8 | 23 | 88 | 73 | 63.5 | 26 |
| 3 1/8" | 81.8 | 210 | 3 | 146 | 123.83 | 7.9 | 39.7 | 31.8 | 117 | 168.3 | 8 | 23 | 91 | 88.9 | 78.7 | 31 |
| 4 1/16" | 108.7 | 275 | 3 | 175 | 149.23 | 7.9 | 46.1 | 38.1 | 152 | 215.9 | 8 | 26 | 110 | 114.3 | 103.1 | 37 |
| 5 1/8" | 131 | 330 | 3 | 210 | 180.98 | 7.9 | 52.4 | 44.5 | 189 | 266.7 | 8 | 29 | 122 | 141.3 | 122.9 | 41 |
| 7 1/16" | 181.8 | 355 | 6 | 241 | 211.15 | 7.9 | 55.6 | 47.6 | 222 | 292.1 | 12 | 29 | 126 | 168.3 | 147.1 | 45 |
| 9" | 229.4 | 420 | 6 | 302 | 269.88 | 7.9 | 63.5 | 55.6 | 273 | 349.3 | 12 | 32 | 141 | 219.1 | 199.1 | 49 |
| 11" | 280.2 | 510 | 6 | 356 | 323.85 | 7.9 | 71.5 | 63.5 | 343 | 431.8 | 16 | 35 | 160 | 273 | 248.4 | 53 |
| 13 5/8" | 346.9 | 560 | 6 | 413 | 381 | 7.9 | 74.7 | 66.7 | 400 | 489 | 20 | 35 | - | - | - | 57 |
| 16 3/4" | 426.2 | 685 | 6 | 508 | 469.9 | 7.9 | 84.2 | 76.2 | 495 | 603.2 | 20 | 42 | - | - | - | 65 |
| 21 1/4" | 540.5 | 815 | 6 | 635 | 584.2 | 9.7 | 98.5 | 88.9 | 610 | 723.9 | 24 | 45 | - | - | - | 73 |
1. RING NUMBER R or RX, 2. C should be the max value 3. Tolerance and Ring Gasket according to API 6A-20TH

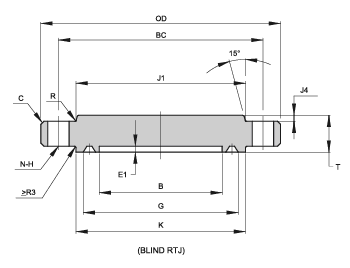

API 6A Type 6BX 2000PSI Blind Flange
We are supplier of API 6A flanges like 2000PSI(13.8MPA) API 6A type 6BX Blind Flange, include type 6B, 6BX with RTJ connection, pressure rating from 2000PSI(13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 2000PSI (13.8MPA) type 6BX Blind API 6A Flange
| Size | OD | C | E1 | G | K | T | J1 | J4 | R | BC | N | H | BX |
| 26 3/4" | 1040 | 6 | 21.4 | 768.33 | 805 | 126.3 | 835.8 | 9.7 | 16 | 952.5 | 20 | 48 | 167 |
| 30" | 1120 | 6 | 23 | 862.3 | 908 | 134.2 | 931.9 | 17.5 | 16 | 1039.8 | 32 | 45 | 303 |
1. RING NUMBER BX, 2. C should be the max value 3. Tolerance and Ring Gasket according to API 6A-20TH
API 6A Type 6B 3000PSI Blind / Welding Neck Flange
We are supplier of API 6A flanges like 3000PSI(20.7MPA) API 6A type 6B Welding Neck Flange Blind Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI(13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 3000PSI (20.7MPA) type 6B Blind and Welding Neck API 6A Flange
| Size | B | OD | C | K | P | E | T | Q | X | BC | N | H | LN | HL | JL | R/RX |
| 2 1/16" | 53.2 | 215 | 3 | 124 | 95.25 | 7.9 | 46.1 | 38.1 | 104.8 | 165.1 | 8 | 26 | 109.6 | 60.3 | 50 | 24 |
| 2 9/16" | 65.9 | 245 | 3 | 137 | 107.95 | 7.9 | 49.3 | 41.3 | 123.8 | 190.5 | 8 | 29 | 112.7 | 73 | 59.7 | 27 |
| 3 1/8" | 81.8 | 240 | 3 | 156 | 123.83 | 7.9 | 46.1 | 38.1 | 127 | 190.5 | 8 | 26 | 109.5 | 88.9 | 74.4 | 31 |
| 4 1/16" | 108.7 | 290 | 3 | 181 | 149.23 | 7.9 | 52.4 | 44.4 | 158.8 | 235 | 8 | 32 | 122.2 | 114.3 | 98 | 37 |
| 5 1/8" | 131 | 350 | 3 | 216 | 180.98 | 7.9 | 58.8 | 50.8 | 190.5 | 279.4 | 8 | 35 | 134.9 | 141.3 | 122.9 | 41 |
| 7 1/16" | 181.8 | 380 | 6 | 241 | 211.15 | 7.9 | 63.5 | 55.6 | 235 | 317.5 | 12 | 32 | 147.6 | 168.3 | 147.1 | 45 |
| 9" | 229.4 | 470 | 6 | 308 | 269.88 | 7.9 | 71.5 | 63.5 | 298.5 | 393.7 | 12 | 39 | 169.9 | 219.1 | 189.7 | 49 |
| 11" | 280.2 | 545 | 6 | 362 | 323.85 | 7.9 | 77.8 | 69.9 | 368.3 | 469.9 | 16 | 39 | 192.1 | 273 | 237.2 | 53 |
| 13 5/8" | 346.9 | 610 | 6 | 419 | 381 | 7.9 | 87.4 | 79.4 | 419.1 | 533.4 | 20 | 39 | - | - | - | 57 |
| 16 3/4" | 426.2 | 705 | 6 | 524 | 469.9 | 11.2 | 100.1 | 88.9 | 508 | 616 | 20 | 45 | - | - | - | 66 |
| 20 3/4" | 527.8 | 855 | 6 | 648 | 584.2 | 12.7 | 120.7 | 108 | 622.3 | 749.3 | 20 | 54 | - | - | - | 74 |
1. RING NUMBER R or RX, 2. C should be the max value 3. Tolerance and Ring Gasket according to API 6A-20TH
API 6A Type 6B 5000PSI Blind / Welding Neck Flange
We are supplier of API 6A flanges like 5000PSI(34.5MPA) API 6A type 6B Welding Neck Flange Blind Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI(13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 5000PSI (34.5MPA) type 6B Blind and Welding Neck API 6A Flange
| Size | B | OD | C | K | P | E | T | Q | X | BC | N | H | LN | HL | JL | R/RX |
| 2 1/16" | 53.2 | 215 | 3 | 124 | 95.25 | 7.9 | 46.1 | 38.1 | 104.8 | 165.1 | 8 | 26 | 109.5 | 60.3 | 43.7 | 24 |
| 2 9/16" | 65.9 | 245 | 3 | 137 | 107.95 | 7.9 | 49.3 | 41.3 | 123.8 | 190.5 | 8 | 29 | 112.7 | 73 | 54.9 | 27 |
| 3 1/8" | 81.8 | 265 | 3 | 168 | 136.53 | 7.9 | 55.6 | 47.7 | 133.3 | 203.2 | 8 | 32 | 125.4 | 88.9 | 67.5 | 35 |
| 4 1/16" | 108.7 | 310 | 3 | 194 | 161.93 | 7.9 | 62 | 54 | 161.9 | 241.3 | 8 | 35 | 131.8 | 114.3 | 88.1 | 39 |
| 5 1/8" | 131 | 375 | 3 | 229 | 193.68 | 7.9 | 81 | 73.1 | 196.8 | 292.1 | 8 | 42 | 163.5 | 141.3 | 110.3 | 44 |
| 7 1/16" | 181.8 | 395 | 6 | 248 | 211.15 | 9.7 | 92.1 | 82.6 | 228.6 | 317.5 | 12 | 39 | 181 | 168.3 | 132.6 | 46 |
| 9" | 229.4 | 485 | 6 | 318 | 269.88 | 11.2 | 103.2 | 92.1 | 292.1 | 393.7 | 12 | 45 | 223.8 | 219.1 | 173.8 | 50 |
| 11" | 280.2 | 585 | 6 | 371 | 323.85 | 11.2 | 119.1 | 108 | 368.3 | 482.6 | 12 | 51 | 265.1 | 273.1 | 216.7 | 54 |
1. RING NUMBER R or RX, 2. C should be the max value 3. Tolerance and Ring Gasket according to API 6A-20TH
API 6A Type 6BX 10000PSI Blind / Welding Neck Flange
We are supplier of API 6A flanges like 10000PSI(69.0MPA) API 6A type 6BX blind/Welding Neck Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI (13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 10000PSI(69.0MPA) type 6BX blind/Welding Neck API 6A Flange
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | BX |
| 1 13/16" | 46.8 | 185 | 3 | - | 5.56 | 77.77 | 105 | 42.1 | 88.9 | 65.1 | 48.5 | - | 10 | 146.1 | 8 | 23 | 151 |
| 2 1/16" | 53.2 | 200 | 3 | - | 5.95 | 86.23 | 111 | 44.1 | 100 | 74.7 | 51.6 | - | 10 | 158.8 | 8 | 23 | 152 |
| 2 9/16" | 65.9 | 230 | 3 | - | 6.75 | 102.77 | 132 | 51.2 | 120.7 | 92.1 | 57.2 | - | 10 | 184.2 | 8 | 26 | 153 |
| 3 1/16" | 78.6 | 270 | 3 | - | 7.54 | 119 | 152 | 58.4 | 142.1 | 110.2 | 63.5 | - | 10 | 215.9 | 8 | 29 | 154 |
| 4 1/16" | 104 | 315 | 3 | - | 8.33 | 150.62 | 185 | 70.3 | 182.6 | 146.1 | 73.1 | - | 10 | 258.8 | 8 | 32 | 155 |
| 5 1/8" | 131 | 360 | 3 | 9.5 | 9.53 | 176.66 | 221 | 79.4 | 223.8 | 182.6 | 81 | 6.4 | 10 | 300 | 12 | 32 | 169 |
| 7 1/16" | 180.2 | 480 | 6 | 11.1 | 11.11 | 241.83 | 302 | 103.2 | 301.6 | 254 | 95.3 | 9.7 | 16 | 403.2 | 12 | 42 | 156 |
| 9 " | 229.4 | 550 | 6 | 12.7 | 12.7 | 299.06 | 359 | 123.9 | 374.7 | 327.1 | 93.7 | 9.7 | 16 | 476.3 | 16 | 42 | 157 |
| 11" | 280.2 | 655 | 6 | 14.3 | 14.29 | 357.23 | 429 | 141.3 | 450.9 | 400.1 | 103.2 | 14.2 | 16 | 565.2 | 16 | 48 | 158 |
| 13 5/8" | 346.9 | 770 | 6 | 15.9 | 15.88 | 432.64 | 518 | 168.3 | 552.5 | 495.3 | 114.3 | 17.5 | 16 | 673.1 | 20 | 51 | 159 |
| 16 3/4" | 426.2 | 870 | 6 | 8.3 | 8.33 | 478.33 | 576 | 168.3 | 655.6 | 601.7 | 76.2 | 30.2 | 19 | 776.3 | 24 | 51 | 162 |
| 18 3/4" | 477 | 1040 | 6 | 18.3 | 18.26 | 577.9 | 697 | 223.1 | 752.5 | 674.7 | 155.6 | 25.4 | 16 | 925.5 | 24 | 61 | 164 |
| 21 1/4" | 540.5 | 1145 | 6 | 19.1 | 19.05 | 647.88 | 781 | 241.3 | 847.7 | 762 | 165.1 | 31.8 | 21 | 1022.4 | 24 | 67 | 166 |
1. RING NUMBER BX, 2. C should be the max value 3. Tolerance and Ring Gasket according to API 6A-20TH
API Flanges Application :
|
|
