MSS SP44 FLANGE Suppliers

MSS SP44 Flanges Supplier, MSS SP44 Series A and B MSS SP44 Flanges, Alloy Steel MSS SP44 Plate Flanges, Carbon Steel MSS SP44 Flange, Manufacturer of MSS SP44 Flanges, Nickel Alloy 200 MSS SP44 Flange, MSS SP44 Flange Dimensions, MSS SP-44 MSS SP44 Flanges in Mumbai, India.

Hastelloy C22 MSS SP44 Flange, Best Price of Duplex Steel MSS SP44 Flanges, Inconel MSS SP44 PN40 Flanges, Stockholder Of PN6 MSS SP44 Flanges, Copper Nickel MSS SP44 Flanges Exporter, Alloy 20 MSS SP44 Flanges Traders in India.

MSS SP44 Flanges Manufacturer

Shankh Metals And Alloys Is An ISO: 9001:2008 Certified Company. We are One Of The Leading MSS SP44 Flanges Manufacturer, Suppliers & Exporter in India. We offer latest technical advancements and carry well maintained inventory ready for immediate delivery to any location. We are supplying flanges in almost everywhere India and also exporting it to countries like UK, Belgium, Saudi Arabia, Dubai, Singapore, Thailand, etc.

MSS SP44 Flange Manufacturer, Supplies Of MSS SP44 Flanges, MSS SP44 Forged Flange, MSS SP44 Flanges in Forged Steel, Stainless Steel, Carbon Steel C22.8, RST37.2, S235JR, P235GH, P245GH, P250GH, ASTM A105, ASTM A182 F304 (1.4306), F304L(1.4307), F316(1.4404), F316L(1.4404), F321(1.4541) etc.

Stockist of Stainless Steel MSS SP44 PN6 Flanges, MSS SP44 Class 150 MSS SP44 Flange, MSS SP44 Pipe Flanges, Global Supplier of MSS SP44 Flanges, ASTM A182 SS MSS SP44 Flange, MSS SP44 Plate Flanges Dealer in India, MSS SP44 Blind Flanges, MSS SP44 Lapped joint Flanges, MSS SP44 Threaded Flange, MSS SP44 Plate Flange Wholesaler.

Table Of Content

Standard Specification For MSS SP44 Flanges :

  • Type: slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange(loose flange), socket welded flange, Orifice Flanges, long welded neck flange
  • Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
  • Standard: ANSI/ASME B16.47 Ser.A, MSS SP-44 Flange
  • Size: 26 inch to 48 inch
  • Pressure: As Per MSS SP-44 Flange
  • Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
  • Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
  • E-catalogue: Available , please visit catalogue of flange
  • Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
Manufacturing Standards Of MSS SP44 Flangess :

Stainless Steel MSS SP44 Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel MSS SP44 Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel MSS SP44 Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel MSS SP44 Flanges : ASTM A350, LF2, LF3

Alloy Steel MSS SP44 Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel MSS SP44 Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy MSS SP44 Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Types Of MSS SP44 Flanges :
MSS SP44 Forged Flanges MSS SP44 High Hub Blinds Flanges
MSS SP44 Blind Flanges MSS SP44 Spectacle Blinds Flanges
MSS SP44 Reducing Flanges MSS SP44 Loose Flanges
MSS SP44 Orifice Flanges MSS SP44 RTJ Flanges
MSS SP44 Socket Weld Flanges MSS SP44 Screwed Flanges
MSS SP44 Slip On Flanges MSS SP44 Weld Neck Flanges
MSS SP44 Flat Flanges MSS SP44 Flange Facing Type & Finish
MSS SP44 Lapped Joint Flanges MSS SP44 SORF Flanges
MSS SP44 SWRF Flanges MSS SP44 Groove & Tongue Flanges
MSS SP44 Square Flanges MSS SP44 Long Neck Weld Flanges
MSS SP44 Threaded Flanges MSS SP44 Spades Ring Spacers Flanges
MSS SP44 Weld Neck Flanges Series A or B MSS SP44 Ring Type Joint Flanges
MSS SP44 WNRF Flanges MSS SP44 Weldo / Nipo Flanges
MSS SP44 Expander Flanges

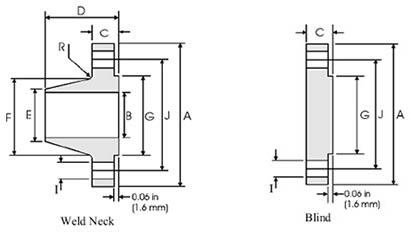

MSS SP-44 Flanges Dimensions

(7-1.) 150 LB. MSS SP-44 FLANGES
SIZE O.D. T T1 øK øX P.C.D. N ød LN
12 19 1 1/4 1 1/4 15 14 3/8 17 12 1 4 1/2
14 21 1 3/8 1 3/8 16 1/4 15 3/4 18 3/4 12 1 1/8 5
16 23 1/2 1 7/16 1 7/16 18 1/2 18 21 1/4 16 1 1/8 5
18 25 1 9/16 1 9/16 21 19 7/8 22 3/4 16 1 1/4 5 1/2
20 27 1/2 1 11/16 1 11/16 23 22 25 20 1 1/4 5 11/16
22 29 1/2 1 13/16 1 13/16 25 1/4 24 27 1/4 20 1 3/8 5 7/8
24 32 1 7/8 1 7/8 27 1/4 26 1/8 29 1/2 20 1 3/8 6
26 34 1/4 2 11/16 2 11/16 29 1/2 26 5/8 31 3/4 24 1 3/8 4 3/4
28 36 1/2 2 13/16 2 13/16 31 1/2 28 5/8 34 28 1 3/8 4 15/16
30 38 3/4 2 15/16 2 15/16 33 3/4 30 3/4 36 28 1 3/8 5 3/8
32 41 3/4 3 3/16 3 3/16 36 32 3/4 38 1/2 28 1 5/8 5 11/16
34 43 3/4 3 1/4 3 1/4 38 34 3/4 40 1/2 32 1 5/8 5 7/8
36 46 3 9/16 3 9/16 40 1/4 36 3/4 42 3/4 32 1 5/8 6 3/16
40 50 3/4 2 3/8 3 1/2 40 3/4 43 3/4 47 1/4 36 1 5/8 6 3/4
42 53 2 5/8 3 3/4 47 44 3/4 49 1/2 36 1 5/8 6 15/16
48 59 1/2 2 3/4 4 1/8 53 1/2 50 3/4 56 44 1 5/8 7 1/4
150lb Welding Neck Flange-MSS SP44-ASME/ANSI B16.47 Series A/Standards, Dimensions & Weight :
Pipe Normal Diam. O.D.
OF
Flange		 Thickness Length
Through
Hub		 Diam. of
Hub
at Base		 Hub
Diam.
Top		 Raised
Face
Diam.		 Diam. of
Bolt
Circle		 No. of
Bolt
Holes		 Diam. of
Bolt
Holes		 Diam. of
Bolt		 Fillet
Radius
Min.
inch O C Y X A R BD BN BH DB r1
26″ 870 68.3 120.7 676.1 660.4 749.3 806.5 24 35.1 1 1/4 9.7
28″ 927.1 71.4 125.5 726.9 711.2 800.1 863.6 28 35.1 1 1/4 11.2
30″ 984.3 74.7 136.7 781.1 762 857.3 914.4 28 35.1 1 1/4 11.2
32″ 1060.5 81 144.5 831.9 812.8 914.4 977.9 28 41.1 1 1/2 11.2
34″ 1111.3 82.6 149.4 882.7 863.6 965.2 1028.7 32 41.1 1 1/2 12.7
36″ 1168.4 90.4 157.2 933.5 914.4 1022.4 1085.9 32 41.1 1 1/2 12.7
38″ 1238.3 87.4 157.2 990.6 965.2 1073.2 1149.4 32 41.1 1 1/2 12.7
40″ 1289.1 90.4 163.6 1041.4 1016 1124 1200.2 36 41.1 1 1/2 12.7
42″ 1346.2 96.8 171.5 1092.2 1066.8 1193.8 1257.3 36 41.1 1 1/2 12.7
44″ 1403.4 101.6 177.8 1143 1117.6 1244.6 1314.5 40 41.1 1 1/2 12.7
46″ 1454.2 103.1 185.7 1196.8 1168.4 1295.4 1365.3 40 41.1 1 1/2 12.7
48″ 1511.3 108 192 1247.6 1219.2 1358.9 1422.4 44 41.1 1 1/2 12.7
50″ 1568.5 111.3 203.2 1301.8 1270 1409.7 1479.6 44 47.8 1 3/4 12.7
52″ 1625.6 115.8 209.6 1352.6 1320.8 1460.5 1536.7 44 47.8 1 3/4 12.7
54″ 1682.8 120.7 215.9 1403.4 1371.6 1511.3 1593.9 44 47.8 1 3/4 12.7
56″ 1746.3 124 228.6 1457.5 1422.4 1574.8 1651 48 47.8 1 3/4 12.7
58″ 1803.4 128.5 235 1508.3 1473.2 1625.6 1708.2 48 47.8 1 3/4 12.7
60″ 1854.2 131.8 239.8 1559.1 1524 1676.4 1759 52 47.8 1 3/4 12.7
MSS SP44 Flanges Application :
  • MSS SP44 Flanges uses in Oil and Gas Pipeline
  • MSS SP44 Flanges uses in Chemical Industry
  • MSS SP44 Flanges uses in Plumbing
  • MSS SP44 Flanges uses in Oil & Gas Industry
  • MSS SP44 Flanges uses in Water Supply Systems
  • MSS SP44 Flanges uses in Paper & Pulp Industry
  • MSS SP44 Flanges uses in Power Plant
  • MSS SP44 Flanges uses in Fabrication Industry
  • MSS SP44 Flanges uses in General purpose applications
  • MSS SP44 Flanges uses in Food Processing Industry
  • MSS SP44 Flanges uses in Structural Pipe
  • MSS SP44 Flanges uses in Heat Exchangers
