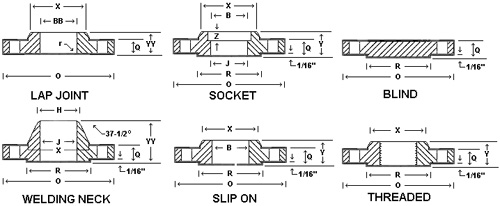

2500 LB. FLANGES
| Normal pipe size |
Outside dia. of flange |
Minimum thickness of flange |
Overall Length | Bolt Circle |
No. and Size of Holes |
O.D. of raised face |
|||
| Welding neck |
Slip-on & socket welding |
Lap Joint |
|||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 133.4 | 30.2 | 73.0 | 39.7 | 39.7 | 88.9 | 4 | 22 | 34.9 |
| 3/4 | 139.7 | 31.8 | 79.4 | 42.9 | 42.9 | 95.3 | 4 | 22 | 42.9 |
| 1 | 158.8 | 34.9 | 88.9 | 47.6 | 47.6 | 108.0 | 4 | 25 | 50.8 |
| 1-1/4 | 184.2 | 38.1 | 95.3 | 52.4 | 52.4 | 130.2 | 4 | 29 | 63.5 |
| 1-1/2 | 203.2 | 44.5 | 111.1 | 60.3 | 60.3 | 146.0 | 4 | 32 | 73.0 |
| 2 | 235.0 | 50.8 | 127.0 | 69.9 | 69.9 | 171.5 | 8 | 29 | 92.1 |
| 2-1/2 | 266.7 | 57.2 | 142.9 | 79.4 | 79.4 | 196.9 | 8 | 32 | 104.8 |
| 3 | 304.8 | 66.7 | 168.3 | 92.1 | 92.1 | 228.6 | 8 | 35 | 127.0 |
| 3-1/2 | |||||||||
| 4 | 355.6 | 76.2 | 190.5 | 108.0 | 108.0 | 273.0 | 8 | 41 | 157.2 |
| 5 | 419.1 | 92.1 | 228.6 | 130.2 | 130.2 | 323.9 | 8 | 48 | 185.7 |
| 6 | 482.6 | 108.0 | 273.1 | 152.4 | 152.4 | 268.3 | 8 | 54 | 215.9 |
| 8 | 552.5 | 127.0 | 317.5 | 177.8 | 177.8 | 438.2 | 12 | 54 | 269.9 |
| 10 | 673.1 | 165.1 | 419.1 | 228.6 | 228.6 | 539.8 | 12 | 67 | 323.9 |
| 12 | 762.0 | 184.2 | 463.6 | 254.0 | 254.0 | 619.1 | 12 | 73 | 381.03 |
| 14 | --- | --- | --- | --- | --- | --- | -- | --- | --- |
| 16 | --- | --- | --- | --- | --- | --- | -- | --- | --- |
| 18 | --- | --- | --- | --- | --- | --- | -- | --- | -- |
| 20 | --- | --- | --- | --- | --- | --- | -- | --- | -- |
| 24 | --- | --- | --- | --- | --- | --- | -- | --- | -- |
Shankh Metals And Alloys Is An ISO : 25001, 14001 & OHSAS: 18001 Certified Company. We are One Of The Leading Class 2500 Flanges Manufacturer, Suppliers & Exporter in India. We offer latest technical advancements and carry well maintained inventory ready for immediate delivery to any location. We are supplying flanges in almost everywhere India and also exporting it to countries like UK, Belgium, Saudi Arabia, Dubai, Singapore, Thailand, etc.
