SABS / SANS 1123 FLANGE Suppliers

SABS / SANS 1123 Flanges Supplier, SABS / SANS 1123 Series A and B SABS / SANS 1123 Flanges, Alloy Steel SABS / SANS 1123 Plate Flanges, Carbon Steel SABS / SANS 1123 Flange, Manufacturer of SABS / SANS 1123 Flanges, Nickel Alloy 200 SABS / SANS 1123 Flange, SABS / SANS 1123 Flange Dimensions, MSS SP-44 SABS / SANS 1123 Flanges in Mumbai, India.

Hastelloy C22 SABS / SANS 1123 Flange, Best Price of Duplex Steel SABS / SANS 1123 Flanges, Inconel SABS / SANS 1123 PN40 Flanges, Stockholder Of PN6 SABS / SANS 1123 Flanges, Copper Nickel SABS / SANS 1123 Flanges Exporter, Alloy 20 SABS / SANS 1123 Flanges Traders in India.

Shankh Metals And Alloys Is An ISO: 9001:2008 Certified Company. We are One Of The Leading SABS / SANS 1123 Flanges Manufacturer, Suppliers & Exporter in India. We offer latest technical advancements and carry well maintained inventory ready for immediate delivery to any location. We are supplying flanges in almost everywhere India and also exporting it to countries like UK, Belgium, Saudi Arabia, Dubai, Singapore, Thailand, etc.

SABS / SANS 1123 Flange Manufacturer, Supplies Of SABS / SANS 1123 Flanges, SABS / SANS 1123 Forged Flange, SABS / SANS 1123 Flanges in Forged Steel, Stainless Steel, Carbon Steel C22.8, RST37.2, S235JR, P235GH, P245GH, P250GH, ASTM A105, ASTM A182 F304 (1.4306), F304L(1.4307), F316(1.4404), F316L(1.4404), F321(1.4541) etc.

British Standard SABS / SANS 1123 : 1962 – Specification for Flanges and Bolting for Pipes, Valves, and Fittings. This covers plain, boss, integrally cast or forged, and welding neck type flanges, in ten tables. Although SABS / SANS 1123 is obsolescent, it remains in use for the dimensions of light duty, economy stainless steel flanges in applications where corrosion resistance and/or hygiene, rather than high pressures and temperatures, are the primary considerations. The following tables detail the applicable standard dimensions from Tables D, E, F and H of SABS / SANS 1123.

Stockist of Stainless Steel SABS / SANS 1123 PN6 Flanges, SABS / SANS 1123 Class 150 SABS / SANS 1123 Flange, SABS / SANS 1123 Pipe Flanges, Global Supplier of SABS / SANS 1123 Flanges, ASTM A182 SS SABS / SANS 1123 Flange, SABS / SANS 1123 Plate Flanges Dealer in India, SABS / SANS 1123 Blind Flanges, SABS / SANS 1123 Lapped joint Flanges, SABS / SANS 1123 Threaded Flange, SABS / SANS 1123 Plate Flange Wholesaler.

Table Of Content

Standard Specification For SABS / SANS 1123 Flanges
Manufacturing Standards Of SABS / SANS 1123 Flangess
Types Of SABS / SANS 1123 Flanges
SABS / SANS 1123 Flanges Dimensions

SABS 1123 Class 600 Flange
SABS 1123 Class 1000 Flange
SABS 1123 Class 1600 Flange
SABS 1123 Class 2500 Flange
SABS 1123 Class 4000 Flange
Backing Ring Flange

SABS / SANS 1123 Flanges Application
Export Destinations For SABS / SANS 1123 Flanges

Standard Specification For SABS / SANS 1123 Flanges :

BS flange is a flange system from England, which have flange type including Welding neck Flanges, Plate Slip-on Flanges, Screwed Boss Flanges, Slip on Boss Flanges, slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange (loose flange), socket welded flange, Orifice Flanges, long weld neck flange and special flangeetc., pressure grade from PN 2.4 to PN 40, Size from 1/2" NB TO 48"NB.

Type: slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange(loose flange), socket welded flange, Orifice Flanges, long welded neck flange
Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
Standard: ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
Size: 1/2-60 inch (DN15-DN2000)
Pressure: ANSI class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160
Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
E-catalogue: Available , please visit catalogue of flange
Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc

Manufacturing Standards Of SABS / SANS 1123 Flangess :

Stainless Steel SABS / SANS 1123 Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel SABS / SANS 1123 Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel SABS / SANS 1123 Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel SABS / SANS 1123 Flanges : ASTM A350, LF2, LF3

Alloy Steel SABS / SANS 1123 Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel SABS / SANS 1123 Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy SABS / SANS 1123 Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Types Of SABS / SANS 1123 Flanges :

SABS / SANS 1123 Forged Flanges	SABS / SANS 1123 High Hub Blinds Flanges
SABS / SANS 1123 Blind Flanges	SABS / SANS 1123 Spectacle Blinds Flanges
SABS / SANS 1123 Reducing Flanges	SABS / SANS 1123 Loose Flanges
SABS / SANS 1123 Orifice Flanges	SABS / SANS 1123 RTJ Flanges
SABS / SANS 1123 Socket Weld Flanges	SABS / SANS 1123 Screwed Flanges
SABS / SANS 1123 Slip On Flanges	SABS / SANS 1123 Weld Neck Flanges
SABS / SANS 1123 Flat Flanges	SABS / SANS 1123 Flange Facing Type & Finish
SABS / SANS 1123 Lapped Joint Flanges	SABS / SANS 1123 SORF Flanges
SABS / SANS 1123 SWRF Flanges	SABS / SANS 1123 Groove & Tongue Flanges
SABS / SANS 1123 Square Flanges	SABS / SANS 1123 Long Neck Weld Flanges
SABS / SANS 1123 Threaded Flanges	SABS / SANS 1123 Spades Ring Spacers Flanges
SABS / SANS 1123 Weld Neck Flanges Series A or B	SABS / SANS 1123 Ring Type Joint Flanges
SABS / SANS 1123 WNRF Flanges	SABS / SANS 1123 Weldo / Nipo Flanges
SABS / SANS 1123 Expander Flanges

SABS / SANS 1123 Flange Dimensional :

Dimensions & Masses SABS/SANS 1123 FLANGE :

SOUTH AFRICA STANDARD SABS/SANS 1123 FLANGE SPECIFICATION

Nominal Bore 15	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600/3	80mm	55mm	4	M10	11mm	10mm
SABS1123-1000/3	95mm	65mm	4	M12	14mm	10mm
SABS1123-1600/3	95mm	65mm	4	M12	14mm	10mm
SABS1123-2500/3	95mm	65mm	4	M12	14mm	14mm
SABS1123-4000/3	95mm	65mm	4	M12	14mm	14mm

Nominal Bore 20	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	90mm	65mm	4	M10	11mm	10mm
SABS1123-1000	105mm	75mm	4	M12	14mm	10mm
SABS1123-1600	105mm	75mm	4	M12	14mm	10mm
SABS1123-2500	105mm	75mm	4	M12	14mm	14mm
SABS1123-4000	105mm	75mm	4	M12	14mm	14mm

Nominal Bore 25	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	100mm	75mm	4	M10	11mm	10mm
SABS1123-1000	115mm	85mm	4	M12	14mm	10mm
SABS1123-1600	115mm	85mm	4	M12	14mm	10mm
SABS1123-2500	115mm	85mm	4	M12	14mm	16mm
SABS1123-4000	115mm	85mm	4	M12	14mm	16mm

Nominal Bore 32	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	120mm	90mm	4	M12	14mm	10mm
SABS1123-1000	140mm	100mm	4	M16	18mm	10mm
SABS1123-1600	140mm	100mm	4	M16	18mm	10mm
SABS1123-2500	140mm	100mm	4	M16	18mm	18mm
SABS1123-4000	140mm	100mm	4	M16	18mm	18mm

Nominal Bore 40	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	130mm	100mm	4	M12	14mm	10mm
SABS1123-1000	150mm	110mm	4	M16	18mm	10mm
SABS1123-1600	150mm	110mm	4	M16	18mm	10mm
SABS1123-2500	150mm	110mm	4	M16	18mm	20mm
SABS1123-4000	150mm	110mm	4	M16	18mm	20mm

Nominal Bore 50	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	140mm	110mm	4	M12	14mm	10mm
SABS1123-1000	165mm	125mm	4	M16	18mm	10mm
SABS1123-1600	165mm	125mm	4	M16	18mm	12mm
SABS1123-2500	165mm	125mm	4	M16	18mm	20mm
SABS1123-4000	165mm	125mm	4	M16	18mm	20mm

Nominal Bore 65	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	160mm	130mm	4	M12	14mm	10mm
SABS1123-1000	185mm	145mm	4	M16	18mm	12mm
SABS1123-1600	185mm	145mm	4	M16	18mm	12mm
SABS1123-2500	185mm	145mm	8	M16	18mm	22mm
SABS1123-4000	185mm	145mm	8	M16	18mm	22mm

Nominal Bore 80	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	190mm	150mm	4	M16	18mm	10mm
SABS1123-1000	200mm	160mm	8	M16	18mm	12mm
SABS1123-1600	200mm	160mm	8	M16	18mm	14mm
SABS1123-2500	200mm	160mm	8	M16	18mm	22mm
SABS1123-4000	200mm	160mm	8	M16	18mm	22mm

Nominal Bore100	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	210mm	170mm	4	M16	18mm	10mm
SABS1123-1000	220mm	180mm	8	M16	18mm	12mm
SABS1123-1600	220mm	180mm	8	M16	18mm	14mm
SABS1123-2500	235mm	190mm	8	M20	22mm	25mm
SABS1123-4000	235mm	190mm	8	M20	22mm	25mm

Nominal Bore150	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	240mm	200mm	8	M16	18mm	12mm
SABS1123-1000	250mm	210mm	8	M16	18mm	14mm
SABS1123-1600	250mm	210mm	8	M16	18mm	16mm
SABS1123-2500	270mm	220mm	8	M24	26mm	28mm
SABS1123-4000	270mm	220mm	8	M24	26mm	28mm

Nominal Bore200	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	265mm	225mm	8	M16	18mm	12mm
SABS1123-1000	285mm	240mm	8	M20	22mm	16mm
SABS1123-1600	285mm	240mm	8	M20	22mm	18mm
SABS1123-2500	300mm	250mm	8	M24	26mm	30mm
SABS1123-4000	300mm	250mm	8	M24	26mm	30mm

Nominal Bore250	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	320mm	280mm	8	M16	18mm	14mm
SABS1123-1000	340mm	295mm	8	M20	22mm	18mm
SABS1123-1600	340mm	295mm	12	M20	22mm	22mm
SABS1123-2500	360mm	310mm	12	M24	26mm	28mm
SABS1123-4000	375mm	320mm	12	M24	26mm	32mm

Nominal Bore300	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	375mm	335mm	12	M16	18mm	16mm
SABS1123-1000	395mm	350mm	12	M20	22mm	20mm
SABS1123-1600	405mm	355mm	12	M24	26mm	25mm
SABS1123-2500	425mm	370mm	12	M24	26mm	30mm
SABS1123-4000	450mm	385mm	12	M30	33mm	38mm

Nominal Bore500	Flange Diameter	PCD	Bolts	Boltsize	Hole Size	Thickness
SABS1123-600	645mm	600mm	20	M20	22mm	25mm
SABS1123-1000	670mm	620mm	20	M24	26mm	32mm
SABS1123-1600	715mm	650mm	20	M30	33mm	40mm
SABS1123-2500	730mm	660mm	20	M30	33mm	50mm
SABS1123-4000	755mm	670mm	20	M39	39mm	70mm

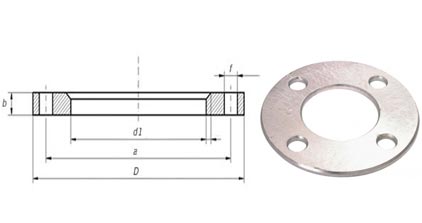

Backing Ring Flange Dimensions

SABS 1123 T1000/3 BACKING RING FLANGE
BS T/D BACKING RING FLANGE

Dimensions & Masses of Backing Ring Flange for HDPE

SABS 1123 T1000/3 BACKING RING FLANGE WITH HOT DIPPED GALVANIZED FOR HDPE PIPE

Pipe OD	ID	OD	Thickness	PCD	No Holes	Hole ID	Weight	Radius
mm	mm	mm	mm	mm		mm	KG	mm
40		140	10	100	4	18
50		150	10	110	4	18
63		165	12	125	4	18
75		185	12	145	4	18
90		200	12	160	8	18
110		220	12	180	8	18
125		220	12	180	8	18
140		250	14	210	8	18
160		285	16	240	8	22
180		285	16	240	8	22
200		340	18	295	8	22
225		340	18	295	8	22
250		395	18	350	12	22
280		395	20	350	12	22
315		445	22	400	12	22
355		505	25	460	16	22
400		565	25	515	16	26
450		615	30	565	20	26
500		670	30	620	20	26
560		730	35	675	20	26
630		835	36	780	20	26

BS T/D BACKING RING FLANGE WITH HOT DIPPD GALVANIZED FOR HDPE PIPE

Pipe OD	ID	OD	Thickness	PCD	No Holes	Hole ID	Weight	Radius
mm	mm	mm	mm	mm		mm	KG	mm
40		120	6	87.3	4	14
50		133.4	6	98.4	4	14
63		152.4	8	114.3	4	18
75		165.1	8	127	4	18
90		184.1	10	146	4	18
110		215.9	10	177.8	4	18
125		215.9	10	177.8	4	18
125 PVC		250	13	209.6	8	18
140		250	13	209.6	8	18
160		279.4	13	235	8	18
180		279.4	13	235	8	18
200		336.6	13	292.1	8	18
225		336.6	13	292.1	8	18
250		406.4	16	355.6	8	22
280		406.4	16	355.6	8	22
315		457.2	20	406.4	12	22
355		527.1	22	469.9	12	26
400		577.9	22	520.7	12	26
450		641.4	25	584.2	12	26
500		705	29	641.4	16	26
560		825.5	30	755.7	16	26
630		825.5	32	755.7	16	26

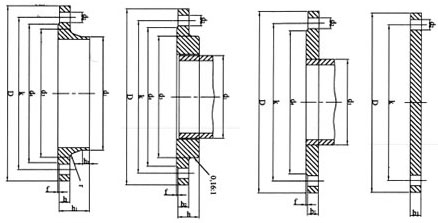

SABS 1123 Class 600 Flange Dimensions

WN Flange: T600/2, T1000/2, T1600/2, T2500/2, T4000/2
Slip on Flange: T600/5, T1000/5, T1600/5, T2500/5, T4000/5
Plate Flange: T600/3, T1000/3, T1600/3, T2500/3, T4000/3
Blind Flange: T600/8, T1000/8, T1600/8, T2500/8, T4000/8
Threaded Flange: T600/4, T1600/4
Backing Ring Flange with Hot Dipped Galvanized

Dimensions & Masses SABS 1123 Flange Class 600kPa

SOUTH AFRICA STANDARD SABS/SANS 1123 FLANGE CLASS 600KPA SPECIFICATION

Nominal pressure 600 kPa 600/2 = Table 4 600/4 = Table 6 600/3 = Table 5 600/8 = Table 8
NB	Pipe O.D. d1	Flange							Raised Face		Bolt	Drilling			Neck			Boss
NB	Pipe O.D. d1	D	b	b1	b2	b3	h	h1	d4	f	Bolt	No.	d2	k	d3	h2	r	d5
10	17.2	75	8	10	8	10	16	28	35	2	M10	4	11	50	26	6	4	25
15	21.3	80	8	10	8	10	16	30	40	2	M10	4	11	55	30	6	4	30
20	26.9	90	8	10	8	10	18	32	50	2	M10	4	11	65	38	6	4	40
25	33.7	100	8	10	8	10	18	35	60	2	M10	4	11	75	42	6	4	50
32	42.4	120	8	10	8	10	20	35	70	2	M12	4	14	90	55	6	6	60
40	48.3	130	8	10	8	10	20	38	80	3	M12	4	14	100	62	7	6	70
50	60.3	140	8	10	8	10	22	38	90	3	M12	4	14	110	74	8	6	80
65	76.1	160	8	10	8	10	26	38	110	3	M12	4	14	130	88	9	6	100
80	88.9	190	10	10	10	10	28	42	128	3	M16	4	18	150	102	10	8	110
100	114.3	210	10	10	10	10	34	45	148	3	M16	4	18	170	130	10	8	130
*125	139.7	240	13	12	13	12	39	48	178	3	M16	8	18	200	155	10	8	160
150	168.3	265	13	12	13	12	39	48	202	3	M16	8	18	225	184	12	10	185
*175	193.7	295	13	14	-	14	-	52	230	3	M16	8	18	255	210	12	10	-
200	219.1	320	13	14	-	14	-	55	258	3	M16	8	18	280	236	15	10	-
*225	244.5	345	16	16	-	16	-	58	285	3	M16	8	18	305	264	15	12	-
250	273	375	16	16	-	16	-	60	312	3	M16	12	18	335	290	15	12	-
300	323.9	440	20	20	-	20	-	62	365	4	M20	12	22	395	342	15	12	-
350	355.6	490	22	22	-	22	-	62	415	4	M20	12	22	445	385	15	12	-
400	406.4	540	22	22	-	22	-	65	465	4	M20	16	22	495	438	15	12	-
450	457.2	595	24	25	-	25	-	65	520	4	M20	16	22	550	492	15	12	-
500	508	645	24	25	-	25	-	68	570	4	M20	20	22	600	538	15	12	-
550	559	705	24	28	-	28	-	68	620	5	M24	20	26	655	590	16	12	-
600	609.6	755	24	30	-	30	-	70	670	5	M24	20	26	705	640	16	12	-
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

SABS 1123 Class 1000 Flange Dimensions

SOUTH AFRICA STANDARD SABS/SANS 1123 FLANGE CLASS 1000KPA SPECIFICATION

Nominal pressure 1000 kPa 1000/2 = Table 9 1000/4 = Table 11 1000/3 = Table 10 1000/8 = Table 13
NB	Pipe O.D. d1	Flange							Raised Face		Bolt	Drilling			Neck			Boss
NB	Pipe O.D. d1	D	b	b1	b2	b3	h	h1	d4	f	Bolt	No.	d2	k	d3	h2	r	d5
10	17.2	90	8	10	8	10	14	35	40	2	M12	4	14	60	28	6	4	30
15	21.3	95	8	10	8	10	14	35	45	2	M12	4	14	65	32	6	4	35
20	26.9	105	8	10	8	10	16	38	58	2	M12	4	14	75	40	6	4	45
25	33.7	115	8	10	8	10	16	38	68	2	M12	4	14	85	46	6	4	52
32	42.4	140	10	10	10	10	20	40	78	2	M16	4	18	100	56	6	6	60
40	48.3	150	10	10	10	10	20	42	88	3	M16	4	18	110	64	7	6	70
50	60.3	165	12	10	10	12	20	45	102	3	M16	4	18	125	75	8	6	85
65	76.1	185	12	12	12	12	26	45	122	3	M16	4	18	145	90	10	6	105
80	88.9	200	14	12	12	14	26	50	138	3	M16	8	18	160	105	10	8	118
100	114.3	220	14	12	12	14	32	52	158	3	M16	8	18	180	131	12	8	140
*125	139.7	250	16	14	14	16	36	55	188	3	M16	8	18	210	156	12	8	168
150	168.3	285	18	16	16	18	38	55	212	3	M20	8	22	240	184	12	10	195
*175	193.7	315	18	16	–	18	–	60	242	3	M20	8	22	270	210	12	10	–
200	219.1	340	18	18	–	18	–	62	268	3	M20	8	22	295	235	16	10	–
*225	244.5	370	18	18	–	18	–	62	290	3	M20	8	22	325	265	16	10	–
250	273.0	395	20	20	–	20	–	68	320	3	M20	12	22	350	292	16	12	–
300	323.9	445	22	22	–	22	–	68	370	4	M20	12	22	400	344	16	12	–
350	355.6	505	26	25	–	25	–	68	430	4	M20	16	22	460	385	16	12	–
400	406.4	565	26	25	–	25	–	72	482	4	M24	16	26	515	400	16	12	–
450	457.2	615	28	30	–	30	–	72	532	4	M24	20	26	565	492	16	12	–
500	508.0	670	28	32	–	32	–	75	585	4	M24	20	26	620	542	16	12	–
550	559.0	730	28	35	–	35	–	80	635	5	M24	20	26	675	592	18	12	–
600	609.6	780	28	38	–	38	–	80	685	5	M24	20	26	725	642	18	12	–
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

SABS 1123 Class 1600 Flange Dimensions

SOUTH AFRICA STANDARD SABS/SANS 1123 FLANGE CLASS 1600KPA SPECIFICATION

Nominal pressure 1600 kPa 1600/2 = Table 14 1600/4 = Table 16 1600/3 = Table 15 1600/8 = Table 18
NB	Pipe O.D. d1	Flange							Raised Face		Bolt	Drilling			Neck			Boss
NB	Pipe O.D. d1	D	b	b1	b2	b3	h	h1	d4	f	Bolt	No.	d2	k	d3	h2	r	d5
10	17.2	90	8	10	8	10	14	35	40	2	M12	4	14	60	28	6	4	30
15	21.3	95	8	10	8	10	14	35	45	2	M12	4	14	65	32	6	4	35
20	26.9	105	8	10	8	10	16	38	58	2	M12	4	14	75	40	6	4	45
25	33.7	115	8	10	8	10	16	38	68	2	M12	4	14	85	46	6	4	52
32	42.4	140	10	10	10	10	20	40	78	2	M16	4	18	100	56	6	6	60
40	48.3	150	10	10	10	10	20	42	88	3	M16	4	18	110	64	7	6	70
50	60.3	165	12	12	12	12	22	45	102	3	M16	4	18	125	75	8	6	85
65	76.1	185	12	12	12	12	26	45	122	3	M16	4	18	145	90	10	6	105
80	88.9	200	14	14	14	14	28	50	138	3	M16	8	18	160	105	10	8	118
100	114.3	220	14	14	14	14	34	52	158	3	M16	8	18	180	131	12	8	140
*125	139.7	250	16	16	16	16	38	55	188	3	M16	8	18	210	156	12	8	168
150	168.3	285	18	18	18	18	40	55	212	3	M20	8	22	240	184	12	10	195
*175	193.7	315	20	20	–	20	–	60	242	3	M20	8	22	270	210	12	10	–
200	219.1	340	22	22	–	22	–	62	268	3	M20	12	22	295	235	16	10	–
*225	244.5	370	24	22	–	22	–	66	294	3	M20	12	22	325	265	16	10	–
250	273.0	405	24	25	–	25	–	70	320	3	M24	12	26	355	292	16	12	–
300	323.9	460	28	28	–	28	–	78	378	4	M24	12	26	410	344	16	12	–
350	355.6	520	30	30	–	30	–	82	438	4	M24	16	26	470	390	16	12	–
400	406.4	580	32	35	–	35	–	85	490	4	M24	16	26	525	445	16	12	–
450	457.2	640	34	40	–	40	–	87	550	4	M24	20	26	585	496	16	12	–
500	508.0	715	34	40	–	40	–	90	610	4	M30	20	33	650	548	16	12	–
550	559.0	775	36	–	–	–	–	95	670	5	M30	20	33	710	600	18	12	–
600	609.6	840	36	50	–	–	–	95	725	5	M30	20	33	770	652	18	12	–
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

SABS 1123 Class 2500 Flange Dimensions

Dimensions & Masses SABS 1123 Flange Class 2500kPa

SOUTH AFRICA STANDARD SABS/SANS 1123 FLANGE CLASS 2500KPA SPECIFICATION

Nominal pressure 2500 kPa 2500/2 = Table 19 2500/4 = Table 21 2500/3 = Table 20 2500/8 = Table 23
NB	Pipe O.D. d1	Flange							Raised Face		Bolt	Drilling			Neck			Boss
NB	Pipe O.D. d1	D	b	b1	b2	b3	h	h1	d4	f	Bolt	No.	d2	k	d3	h2	r	d5
10	17.2	90	12	12	10	12	16	35	40	2	M12	4	14	60	28	6	4	30
15	21.3	95	14	14	11	14	17	38	45	2	M12	4	14	65	32	6	4	35
20	26.9	105	14	14	11	14	19	40	58	2	M12	4	14	75	40	6	4	45
25	33.7	115	16	16	12	16	22	40	68	2	M12	4	14	85	46	6	4	52
32	42.4	140	18	18	14	18	26	42	78	2	M16	4	18	100	55	6	6	60
40	48.3	150	18	20	14	20	28	45	88	3	M16	4	18	110	64	7	6	70
50	60.3	165	20	20	17	20	31	48	102	3	M16	4	18	125	75	8	6	85
65	76.1	185	22	22	17	22	33	52	122	3	M16	8	18	145	90	10	6	105
80	88.9	200	24	22	18	22	34	58	138	3	M16	8	18	160	105	12	8	118
100	114.3	235	24	25	21	25	41	65	162	3	M20	8	22	190	134	12	8	145
*125	139.7	270	26	28	24	28	46	68	188	3	M24	8	26	220	162	12	8	170
150	168.3	300	28	30	24	30	48	75	218	3	M24	8	26	250	192	12	10	200
*175	193.7	330	30	30	–	25	–	75	248	3	M24	12	26	280	218	15	10	–
200	219.1	360	30	30	–	30	–	80	278	3	M24	12	26	310	244	16	10	–
*225	244.5	395	30	30	–	30	–	84	306	3	M24	12	26	340	270	16	10	–
250	273.0	425	30	30	–	30	–	88	335	3	M24	12	26	370	298	18	12	–
300	323.9	485	34	32	–	32	–	92	395	4	M24	16	26	430	352	18	12	–
350	355.6	555	38	35	–	35	–	100	450	4	M30	16	33	490	398	20	12	–
400	406.5	620	40	40	–	40	–	110	505	4	M30	16	33	550	452	20	12	–
450	457.2	670	42	45	–	45	–	110	555	4	M30	20	33	600	505	20	12	–
500	508.0	730	44	50	–	50	–	125	615	4	M30	20	33	660	558	20	12	–
550	559.0	785	–	55	–	–	–	–	670	5	M36	20	39	710	–	–	–	–
600	609.6	845	46	60	–	–	–	125	720	5	M36	20	39	770	660	20	12	–
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

Dimensions & Masses SABS 1123 Flange Class 4000kPa

SOUTH AFRICA STANDARD SABS/SANS 1123 FLANGE CLASS 4000KPA SPECIFICATION

Nominal pressure 4000 kPa 4000/2 = Table 24 4000/4 = Table 26 4000/3 = Table 25 4000/8 = Table 28
NB	Pipe O.D. d1	Flange							Raised Face		Bolt	Drilling			Neck			Boss
NB	Pipe O.D. d1	D	b	b1	b2	b3	h	h1	d4	f	Bolt	No.	d2	k	d3	h2	r	d5
10	17.2	90	12	12	12	12	18	35	40	2	M12	4	14	60	28	6	4	30
15	21.3	95	14	14	14	14	20	38	45	2	M12	4	14	65	32	6	4	35
20	26.9	105	14	14	14	14	22	40	58	2	M12	4	14	75	40	6	4	45
25	33.7	115	16	16	16	16	26	40	68	2	M12	4	14	85	46	6	4	52
32	42.4	140	18	18	18	18	30	42	78	2	M16	4	18	100	55	6	6	60
40	48.3	150	18	20	18	20	32	45	88	3	M16	4	18	110	64	7	6	70
50	60.3	165	20	20	20	20	34	48	102	3	M16	4	18	125	75	8	6	85
65	76.1	185	22	22	22	22	38	52	122	3	M16	8	18	145	90	10	6	105
80	88.9	200	24	22	24	22	40	58	138	3	M16	8	18	160	105	12	8	118
100	114.3	235	24	25	24	25	44	65	162	3	M20	8	22	190	134	12	8	145
*125	139.7	270	26	28	26	28	48	68	188	3	M24	8	26	220	162	12	8	170
150	168.3	300	28	30	28	30	52	75	218	3	M24	8	26	250	192	12	10	200
*175	193.7	350	32	32	–	32	–	82	260	3	M24	12	26	295	218	15	10	–
200	219.1	375	34	32	–	32	–	88	285	3	M24	12	26	320	244	16	10	–
*225	244.5	420	36	35	–	35	–	100	315	3	M30	12	33	355	275	18	12	–
250	273.0	450	38	38	–	38	–	105	345	3	M30	12	33	385	306	18	12	–
300	323.9	515	42	40	–	40	–	115	410	4	M30	16	33	450	362	18	12	–
350	355.6	580	46	45	–	45	–	125	465	4	M30	16	33	510	408	20	12	–
400	406.4	660	50	50	–	50	–	135	535	4	M36	16	39	585	462	20	12	–
450	457.2	685	52	60	–	60	–	140	575	4	M36	20	39	610	510	20	12	–
500	508.0	755	52	70	–	70	–	140	615	4	M36	20	39	670	562	20	12	–
550	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
600	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

SABS / SANS 1123 Flanges Application :

SABS / SANS 1123 Flanges uses in Oil and Gas Pipeline
SABS / SANS 1123 Flanges uses in Chemical Industry
SABS / SANS 1123 Flanges uses in Plumbing
SABS / SANS 1123 Flanges uses in Oil & Gas Industry
SABS / SANS 1123 Flanges uses in Water Supply Systems
SABS / SANS 1123 Flanges uses in Paper & Pulp Industry

SABS / SANS 1123 Flanges uses in Power Plant
SABS / SANS 1123 Flanges uses in Fabrication Industry
SABS / SANS 1123 Flanges uses in General purpose applications
SABS / SANS 1123 Flanges uses in Food Processing Industry
SABS / SANS 1123 Flanges uses in Structural Pipe
SABS / SANS 1123 Flanges uses in Heat Exchangers
