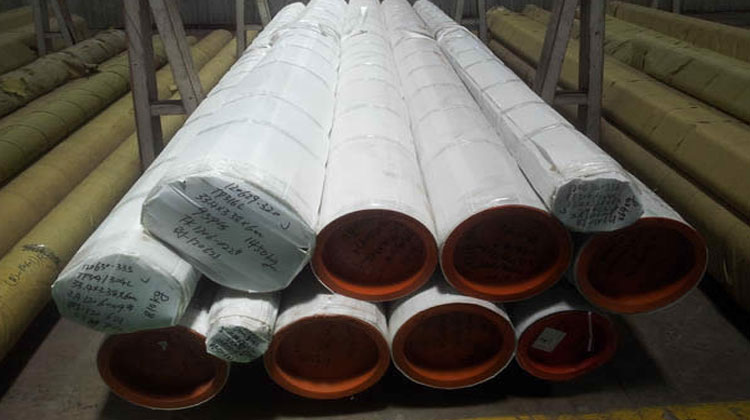

ZERON 100 Super Duplex Steel Seamless Pipes
ASTM A790 UNS S32760 ZERON 100 werkstoff nr.1.4501 Seamless Pipes & Tubes Manufacturer, Exporter & Suppliers.
ASTM A790 UNS S32760 ZERON 100 werkstoff nr.1.4501 Seamless Pipes & Tubes Manufacturer, Exporter & Suppliers.
Call Us for Best Prices for Stainless Steel Pipes, Stainless Steel Tubes and Other Special Alloys!
Buy High Quality Stainless Steel Pipes, SS Tubes! Email Us: sales@shankhmetals.com
The combination of the above properties settles on ZERON 100 the ideal decision in a scope of ventures. Oil and gas industry applications incorporate process, seawater, firewater, and subsea pipework frameworks, with related risers, manifolds, weight vessels, valves and warmth exchangers. Utilizations of ZERON 100 in different businesses incorporate pipework frameworks and related designing hardware for contamination control, mash and paper, control age, pipe gas desulphurisation, compound, pharmaceutical, desalination, mining, metallurgical and marine enterprises. We are likewise give EQUIVALENT GRADES like DIN 1.4501, UNS S32760.
| Grade | DIN | UNS |
| Zeron 100 | 1.4501 | S32760 |
Specifications
UNS S32760 , (J93380 Castings), Werkstoff 1.4501 (1.4508 Castings)
- European: EN 10028-7, EN 10088-2, EN 10088-3, EN 10272, EN 10216-5, EN 10217-7 NACE: ISO 15156 / MR0175 Part 3
- ASME: B16.5, B16.34, B16.47, B31.3, Sec. VIII Division 1 Case 2244-2, 2245-1, Sec. III Division 1 Case N-564-2
- ASTM: A 182 (Grade F55), A 240, A 276, A 314, A 473, A 479, A 789, A 790, A 815, A890, A 928, A 988, A 995
- API 5LC, BSI PD 5500 – Enquiry Case 5500/87
ASTM Specifications
| Pipe & Tube | Sheet/Plate | Bar |
| A790, A928, A789 | A240 | A276 |
Chemical Composition, %
| Cr | Ni | Mo | C | W | Cu |
| 24.0-26.0 | 6.0-8.0 | 3.0-4.0 | 0.030 Max | 0.5-1.0 | 0.50-1.0 |
| N | Mn | Si | P | S | Fe |
| 0.2-0.3 | 1.00 Max | 1.0 Max | 0.03 Max | 0.01 Max | Balance |
Mechanical Properties
| Tensile Strength, ksi | .2% Yield Strength, ksi | % Elongation in 50mm | Hardness Max. |
| 109 | 80 | 25 | 28 HRC |
Applications:
- Medicine
- Aerospace
- Food and drink
- Nuclear Power
- Valve & Pumps
- Nickel Alloy in Pulp and Paper
- Petrochemical
- Motor industry
- Chemicals industry
- Fertilizers
- Energy industry
- Pulp and paper industry
- Transport and traffic
- Electronics
- Architecture and construction
