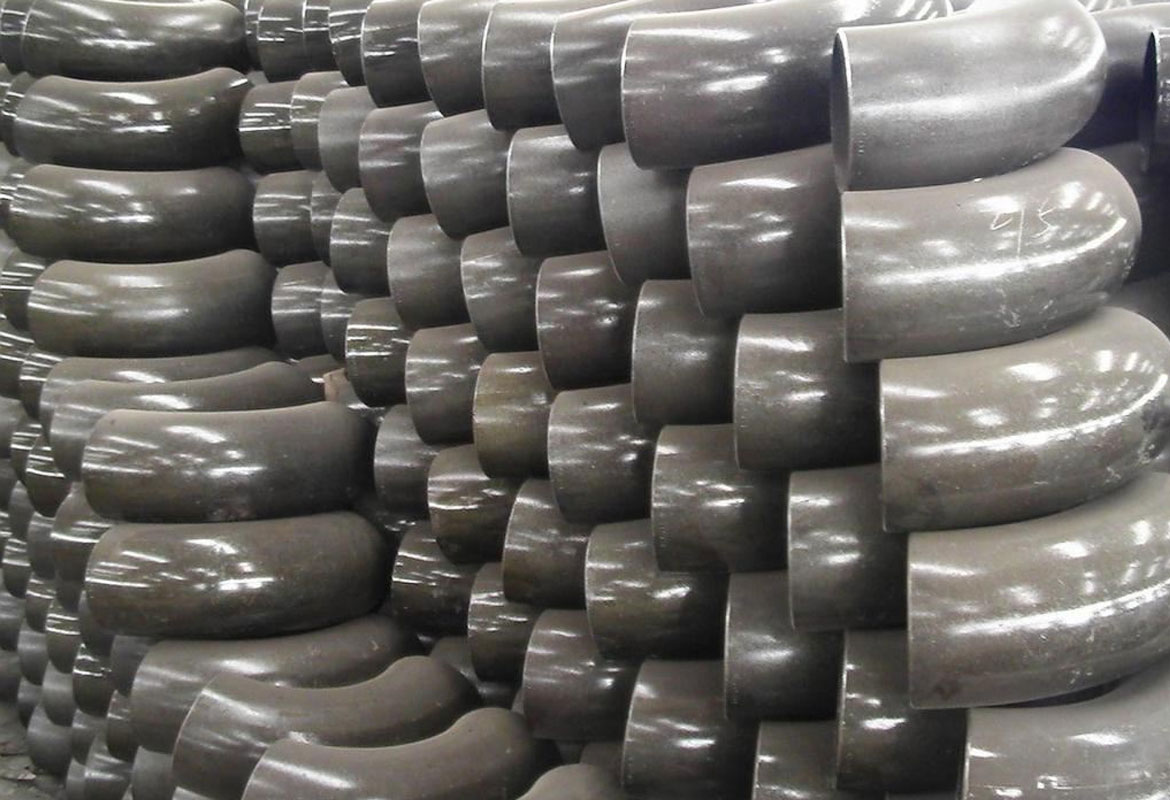

ASTM A815 Duplex Steel Pipe Bends Supplier
Duplex Steel Pipe Bend Supplier, Seamless 2205 Duplex Pipe Bend, Werkstoff No 1.4462 Duplex High Pressure Bending, Duplex Steel S31803 U Pipe Bend, Manufacturer Of ASTM A815 S32205 Duplex Steel J Pipe Bend, ANSI B16.9 Duplex 2205 3D Pipe Bends in Mumbai, India.
Duplex Steel 2205 Welded Pipe Bend, Duplex Steel Pipe Bends, Duplex Steel UNS S31803 Buttweld Bend, Stockist of Duplex Steel S32205 Long Radius Bend, Duplex Steel Piggable Bend Dealer in India, Global Supplier of 2205 Duplex Hot Induction Bend, ANSI B16.9, ANSI B16.28, MDuplex Steel SP-43, or MDuplex Steel SP-75 Pipe Bends.
Shankh Metals And Alloys Is An ISO: 9001:2008 Certified Company.We Manufacturer Our Products By High Grade Material To Provide Good Quality Duplex Steel S31803 / S32205 Pipe Bends To Our Domestic And Overseas Customers. Bends accomplish a Lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency products like UNS S31803 Duplex Steel 3D Pipe Bend, WNR 1.4462 Duplex Steel Hot Induction Bends & Duplex Steel ASTM A815 S31803 / S32205 Pipe Bends. These products are used in various commercial, industrial and automobile industries. We manufacture ANSI B16.9 S32205 Welded Pipe Bend using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.We are one of the top Manufacturers and Suppliers of ASTM A815 Duplex Steel S31803 / S32205 Pipe Bend. We Manufacture Other range of ASTM A815 Duplex Steel 2205 Pipe Bends such as Duplex Steel 2205 Long Radius Bend, 2205 Duplex Piggable Bend, Duplex Steel S31803 Hot Induction Bend, Duplex S32205 Seamless Pipe Bend, Duplex Steel Welded Pipe Bend, Duplex 2205 U Pipe Bend, Duplex Steel S32205 J Pipe Bend, 2205 Duplex Mitered Pipe Bend, Duplex Steel 3D Pipe Bend in Mumbai, India.
Best Price of Duplex Mitered Pipe Bend Exporter, Ferritic / Austenitic Duplex Steel 2205 5D Pipe Bend, Stockholder Of Duplex Steel S31803 10D Pipe Bend, ASME SA815M Duplex Steel S32205 Customized Pipe Bend Wholesaler, 2205 Duplex Steel 45 Degree Pipe Bend Traders in India.
Table Of Content
- Standard Specification For S31803 / S32205 Duplex Steel Pipe Bend
- Manufacturing Standards Of S31803 / S32205 Duplex Steel Pipe Bends
- S31803 / S32205 Duplex Steel Bend Equivalent Grades
- Types Of S31803 / S32205 Duplex Steel Pipe Bends
- ASTM A815 Duplex Steel S31803 / S32205 Long Radius Bend
- ASTM A815 Duplex Steel S31803 / S32205 Piggable Bend
- ASTM A815 Duplex Steel S31803 / S32205 Hot Induction Bend
- ASTM A815 Duplex Steel S31803 / S32205 Seamless Pipe Bend
- ASTM A815 Duplex Steel S31803 / S32205 Welded Pipe Bend
- ASTM A815 Duplex Steel S31803 / S32205 U Pipe Bend
- ASTM A815 Duplex Steel S31803 / S32205 J Pipe Bend
- ASTM A815 Duplex Steel S31803 / S32205 Mitered Pipe Bend
- ASTM A815 Duplex Steel S31803 / S32205 3D Pipe Bend
- ASTM A815 Duplex Steel S31803 / S32205 5D Pipe Bend
- ASTM A815 Duplex Steel S31803 / S32205 10D Pipe Bend
- Chemical Composition of Grade S31803 / S32205 Duplex Steel Pipe Bends
- Mechanical Properties of ASTM A815 Duplex Steel S31803 / S32205 Pipe Bends
- Price List Of S31803 / S32205 Duplex Steel Pipe Bend
- S31803 / S32205 Duplex Steel Pipe Bend Available Types
- S31803 / S32205 Duplex Steel Pipe Bend Application
- Export Destinations For S31803 / S32205 Duplex Steel Pipe Bend
Standard Specification Of Duplex Steel S31803 / S32205 Pipe Bend
Specifications : ASTM A815 & ASME SA815
Dimensions : ASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75
Size : Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Outer Diameter : 38.0 mm – 206.0 mm
Wall Thickness : 1.5 mm / 2.0 mm / 3.0 mm – greater wall thickness at request
Bend Radii : 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm
Bending Radius(R): R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°
Grades : Duplex S31803, S32205
Manufacturing Standards Of Duplex Steel S31803 / S32205 Pipe Bends :
| ASME Pipe Bend | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN Pipe Bend | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN Pipe Bend | EN10253-1, EN10253-2 |
| ASTM A815 | ASME SA815 – Standard Specification for Wrought Austenitic Duplex Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Types Of Grade S31803 / S32205 Duplex Steel Pipe Bends
Duplex Steel Bend Equivalent Grades :
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 | 1.4462 | S31803 / S32205 |
Chemical Composition of S31803 / S32205 Duplex Steel Pipe Bends :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Mechanical Properties of Duplex Steel S31803 / S32205 Pipe Bend :
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S31803 / S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
S31803 / S32205 Duplex Steel Pipe Bend Available Types :
| Duplex Steel Pipe Bend Manufacturer | Duplex Steel 2205 Buttweld Bend |
| Duplex Steel S31803 X Bends | Duplex Steel S32205 Long Radius Bend |
| Duplex Steel UNS S31803 Piggable Bend | Duplex Steel Hot Induction Bend |
| Duplex Steel Seamless Pipe Bend Suppliers | ANSI Duplex Welded Pipe Bend Supplier |
| Duplex Steel U Pipe Bend Dealer | Duplex Steel J Pipe Bend Exporter |
| Duplex Steel 2205 Mitered Pipe Bend Stockholder | Ferritic / Austenitic Duplex 3D Pipe Bend Distributors |
| Duplex Steel UNS S32205 5D Pipe Bend | Duplex Steel S31803 10D Pipe Bend Manufacturer |
| Duplex Steel DIN 1.4462 2.5D Pipe Bend | Duplex Steel S32205 22D Pipe Bend |
| Duplex Steel Customized Pipe Bend | Duplex 2205 Bend Exporter |
| ANSI B16.9 Duplex Steel 12D Pipe Bending | 2205 Duplex Steel High Pressure Bending Stockist |
| ASTM A815 Duplex Steel 180 Degree Pipe Bend | ASME SA815 Duplex Steel DIN Pipe Bend |
| Duplex Steel S32205 EN Pipe Bend | S31803 Duplex ASME Pipe Bend |
| A815 Duplex Steel Small Size Pipe Bending | ASME SA815M Duplex Steel Pipe Bend Elbow |
| 2205 Duplex 90 Degree Pipe Bend | Duplex Steel 160 Deg Pipe Bend |
Duplex Steel S31803 / S32205 Pipe Bend Price List
- Duplex Steel 10D pipe bend, Duplex Steel bended steel pipe, Duplex Steel bended steel tube
FOB Price in India : US $50-10000 / Piece - Duplex Steel 3D hot bender for pipe tube bending
FOB Price in India : US $50-10000 / Piece - best price Of Hot Duplex Steel Pipe Bends Elbow
FOB Price in India : US $10-1000 / Piece - Duplex Steel Long radius hot bend pipes
FOB Price in India : US $0.06-0.39 / Ton - Duplex Steel 2205 pipe bend
FOB Price in India : US $0.2-666 / Piece
Duplex Steel S31803 / S32205 Pipe Bend Application
- Industrial Boilers
- Power Plants
- Nuclear Plants
- Oil & Gas Industry
- Refineries
- Ship Building
- Heat Exchangers
- Condensers
- Paper & Pulp
- Marine Applications
- Nuclear Power
- Fossil Fuel Power Plants
