ASME B16.9 Buttweld 180° Short Radius Elbow Dimensions

180° Short Radius Elbow Manufacturer & Supplier In Mumbai

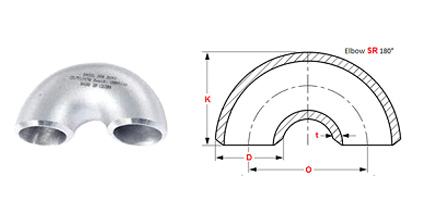

ANSI 16.9 180° Short Radius Elbow Dimensions

NPS O.D. D 180° Short Radius
Center to Center
O
Back to Face
K
1/2 21.3 76 48
3/4 26.7 76 51
1 33.4 76 56
42.2 95 70
48.3 114 83
2 60.3 152 106
73 190 132
3 88.9 229 159
101.6 267 184
4 114.3 305 210
5 141.3 381 262
6 168.3 457 313
8 219.1 610 414
10 273 762 518
12 323.8 914 619
14 355.6 1067 711
16 406.4 1219 813
18 457 1372 914
20 508 1524 1016
22 559 1676 1118
24 610 1829 1219

ASME B16.9 180° Short Radius Elbow Dimensional Tolerance

For all fittings 180° Returns
Nominal Pipe Size (NPS) Outside Ø
at Bevel
Inside Ø
at End
Wall Thickness
t / t1
Center to Center Dim.
O
Back to Face Dim.
K
Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 7 7 1
3 a 3 1/2 1 1,6 less 7 7 1
4 +2 -1 1,6 than 7 7 1
5 a 6 +3 -1 1,6 87,50% 7 7 1
8 2 1,6 of nominal 7 7 1
10 +4 -3 3,2 thickness 7 7 2
12 a 18 +4 -3 3,2 10 7 2
20 a 24 +6 -5 4,8 10 7 2
26 a 30 +7 -5 4,8 ..... ..... .....
32 a 48 +7 -5 4,8 ..... ..... .....

Angularity Tolerances
ND Max off angle Max off plane
Q P
1/2 a 4 1 2
5 a 8 2 4
10 a 12 3 5
14 a 16 3 7
18 a 24 4 10
26 a 30 5 10
32 a 42 5 13
44 a 48 5 20
Standard Specification For Buttweld 180° Short Radius Elbow

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/2"NB TO 48"NB IN

Type : Welded / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : 180° Short Radius Elbow, Butt weld 180° Short Radius Elbow.


Material & Grades of Buttweld 180° Short Radius Elbow :

Stainless Steel Buttweld 180° Short Radius Elbow :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Duplex & Super Duplex Steel Buttweld 180° Short Radius Elbow :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Carbon Steel Buttweld 180° Short Radius Elbow :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Buttweld 180° Short Radius Elbow : ASTM A420 WPL3, A420 WPL6

Alloy Steel Buttweld 180° Short Radius Elbow :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Buttweld 180° Short Radius Elbow :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.


ASME B16.9 Buttweld 180° Short Radius Elbow Available Types
Buttweld 180° Short Radius Elbow Butt Weld B16.9 180° Short Radius Elbow
ASME B16.9 Butt weld 180° Short Radius Elbow Steel 180° Short Radius Elbow
Stainless Steel 180° Short Radius Elbow Suppliers SS 180° Short Radius Elbow
ANSI B16.9 Buttweld 180° Short Radius Elbow Dealer ASME B16.28 Buttweld 180° Short Radius Elbow Exporter
Welded Butt weld 180° Short Radius Elbow Stockholder Seamless Butt weld 180° Short Radius Elbow Distributors
Carbon Steel 180° Short Radius Elbow High Quality 180° Short Radius Elbow Manufacturer
ASTM A403 Stainless Steel 180° Short Radius Elbow Duplex Steel Buttweld 180° Short Radius Elbow
Super Duplex Steel Buttweld 180° Short Radius Elbow Copper Nickel 180° Short Radius Elbow
High Nickel Alloy 180° Short Radius Elbow Hastelloy 180° Short Radius Elbow Stockist
Titanium Buttweld 180° Short Radius Elbow Inconel Butt weld 180° Short Radius Elbow
