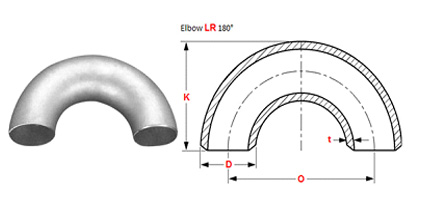

180° Long Radius Elbow Manufacturer & Supplier In Mumbai
ANSI 16.9 180° Long Radius Elbow Dimensions
| NPS | O.D. D | 180° Long Radius | |
| Center to Center O |
Back to Face K |
||
| 1/2 | 21.3 | 76 | 48 |
| 3/4 | 26.7 | 76 | 51 |
| 1 | 33.4 | 76 | 56 |
| 1¼ | 42.2 | 95 | 70 |
| 1½ | 48.3 | 114 | 83 |
| 2 | 60.3 | 152 | 106 |
| 2½ | 73 | 190 | 132 |
| 3 | 88.9 | 229 | 159 |
| 3½ | 101.6 | 267 | 184 |
| 4 | 114.3 | 305 | 210 |
| 5 | 141.3 | 381 | 262 |
| 6 | 168.3 | 457 | 313 |
| 8 | 219.1 | 610 | 414 |
| 10 | 273 | 762 | 518 |
| 12 | 323.8 | 914 | 619 |
| 14 | 355.6 | 1067 | 711 |
| 16 | 406.4 | 1219 | 813 |
| 18 | 457 | 1372 | 914 |
| 20 | 508 | 1524 | 1016 |
| 22 | 559 | 1676 | 1118 |
| 24 | 610 | 1829 | 1219 |
ASME B16.9 180° Long Radius Elbow Dimensional Tolerance
| For all fittings | 180° Returns | |||||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to Center Dim. O |
Back to Face Dim. K |
Align- ment of Ends U |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 7 | 7 | 1 |
| 3 a 3 1/2 | 1 | 1,6 | less | 7 | 7 | 1 |
| 4 | +2 -1 | 1,6 | than | 7 | 7 | 1 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 7 | 7 | 1 |
| 8 | 2 | 1,6 | of nominal | 7 | 7 | 1 |
| 10 | +4 -3 | 3,2 | thickness | 7 | 7 | 2 |
| 12 a 18 | +4 -3 | 3,2 | 10 | 7 | 2 | |
| 20 a 24 | +6 -5 | 4,8 | 10 | 7 | 2 | |
| 26 a 30 | +7 -5 | 4,8 | ..... | ..... | ..... | |
| 32 a 48 | +7 -5 | 4,8 | ..... | ..... | ..... | |
| Angularity Tolerances | ||
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
Standard Specification For Buttweld 180° Long Radius Elbow
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2"NB TO 48"NB IN
Type : Welded / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form : 180° Long Radius Elbow, Butt weld 180° Long Radius Elbow.
Material & Grades of Buttweld 180° Long Radius Elbow :
Stainless Steel Buttweld 180° Long Radius Elbow :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld 180° Long Radius Elbow :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Buttweld 180° Long Radius Elbow :
ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Buttweld 180° Long Radius Elbow : ASTM A420 WPL3, A420 WPL6
Alloy Steel Buttweld 180° Long Radius Elbow :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Buttweld 180° Long Radius Elbow :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
ASME B16.9 Buttweld 180° Long Radius Elbow Available Types
| Buttweld 180° Long Radius Elbow | Butt Weld B16.9 180° Long Radius Elbow |
| ASME B16.9 Butt weld 180° Long Radius Elbow | Steel 180° Long Radius Elbow |
| Stainless Steel 180° Long Radius Elbow Suppliers | SS 180° Long Radius Elbow |
| ANSI B16.9 Buttweld 180° Long Radius Elbow Dealer | ASME B16.28 Buttweld 180° Long Radius Elbow Exporter |
| Welded Butt weld 180° Long Radius Elbow Stockholder | Seamless Butt weld 180° Long Radius Elbow Distributors |
| Carbon Steel 180° Long Radius Elbow | High Quality 180° Long Radius Elbow Manufacturer |
| ASTM A403 Stainless Steel 180° Long Radius Elbow | Duplex Steel Buttweld 180° Long Radius Elbow |
| Super Duplex Steel Buttweld 180° Long Radius Elbow | Copper Nickel 180° Long Radius Elbow |
| High Nickel Alloy 180° Long Radius Elbow | Hastelloy 180° Long Radius Elbow Stockist |
| Titanium Buttweld 180° Long Radius Elbow | Inconel Butt weld 180° Long Radius Elbow |
