Threaded / Screwed Tee
Alloy Steel Forged Screwed Tee, Forged Threaded Tee, ASTM A182 SS Threaded Tees, Threaded Equal Tee Dimensions, Threaded Fittings Tee, Forged Tee, Nickel Alloy 200 Equal Tee, High Quality Screwed Equal Tee Manufacturer in Mumbai, India.
Stockist of Stainless Steel Threaded Tee, Forged Screwed Equal Tee, Threaded Forged Equal Tees, SS 310 Threaded Tee Dealer in India, Global Supplier of ANSI B16.11 Forged Threaded Tee, ASME B16.11 Forged Threaded Tee, Forged Screwed Equal Tee 3000LB Threaded.
Shankh Metals And Alloys Is An ISO: 9001:2008 Certified Company.We Manufacturer Our Products By High Grade Material To Provide Good Quality Threaded / Screwed Tee Fittings To Our Domestic And Overseas Customers. Socket Weld Fitting accomplish a Lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency products like Stainless Steel Threaded Equal Tee, Carbon Steel Screwed 45 Degree Elbow & Alloy Steel Threaded 45° Elbows. These products are used in various commercial, industrial and automobile industries. We manufacture ANSI B16.11 Forged Threaded / Screwed 90° Elbow using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.We are one of the top Manufacturers and Suppliers of ASME B16.11 Threaded / Screwed 45° Elbow in Mumbai, India.
MSS SP-79 and MSS SP-83 Threaded Equal Tee, Inconel Forged Screwed Equal Tee, 3000LB Threaded Equal Tee, Best Price of Duplex Steel Threaded Tee, Stockholder Of Forged Threaded Tee, BS3799 Screwed Forged Equal Tee Wholesaler, Hastelloy C22 Forged Pipe Tee, Copper Nickel Threaded Tee Exporter, Alloy 20 Threaded Tee Traders in India.
Table Of Content
- Best Offer On Threaded / Screwed Equal Tee
- Standard Specification For Threaded / Screwed Equal Tee
- Material & Grades of Threaded / Screwed Equal Tee
- ASME B16.9 Threaded / Screwed Equal Tee Available Types
- Threaded / Screwed Equal Tee Dimension
- Threaded / Screwed Equal Tee Application
- Export Destinations For Threaded / Screwed Equal Tee
- Price List Of Threaded / Screwed Equal Tee Fittings
Threaded / Screwed Equal Tee Manufacturer & Supplier In Mumbai

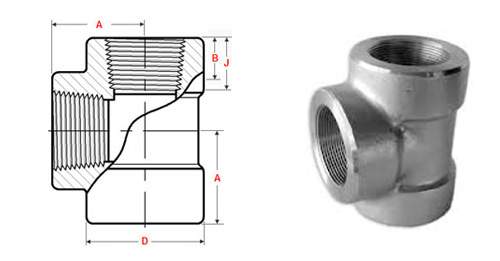

Dimensions threaded Tees - NPS 1/2 to 4 - 2000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1¼ | 17 | 18 | 56 | 44 | 3.89 |
| 1½ | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2½ | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
Dimensions threaded Tees - NPS 1/2 to 4 - 3000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1¼ | 17 | 18 | 62 | 51 | 5.28 |
| 1½ | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2½ | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
Dimensions threaded Tees - NPS 1/2 to 4 - 6000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1¼ | 17 | 18 | 75 | 60 | 10.59 |
| 1½ | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2½ | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
Standard Specification For Forged Threaded / Screwed Equal Tee
Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8" NB TO 4" NB
Pressure Class : 3000 LBS, 6000 LBS, 4500 LBS
Form : Equal Tee, Forged Tee, Cross Tee.
Material & Grades of Forged Threaded / Screwed Equal Tee :
Stainless Steel Forged Threaded / Screwed Equal Tee :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Threaded / Screwed Equal Tee :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Threaded / Screwed Equal Tee :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Threaded / Screwed Equal Tee :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Threaded / Screwed Equal Tee : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded / Screwed Equal Tee :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
ASME B16.11 Forged Threaded / Screwed Equal Tee Available Types
| Forged Threaded Tee | Forged Screwed Equal Tees |
| 150 lb. Threaded Fittings Pipe Tee | Threaded Forged Equal Tee |
| ASME B16.11 Forged Threaded Tee | Forged Tee 3000LB Threaded |
| Stainless Steel Screwed Equal Tee Suppliers | SS Forged Threaded Equal Tees |
| ANSI B16.11 Forged Threaded Tee Dealer | BS 3799 Forged Screwed Equal Tee Exporter |
| Forged Threaded Tee Stockholder | Threaded Forged Pipe Tee Distributors |
| Carbon Steel Threaded Equal Tee | High Quality Threaded Tee Manufacturer |
| ASTM A182 Threaded Stainless Steel Tees | Duplex Steel Threaded Equal Tee |
| Super Duplex Steel Screwed Equal Tee | Copper Nickel Threaded Equal Tee |
| High Nickel Alloy Forged Threaded Tee | Hastelloy Screwed Tee Stockist |
| Titanium Forged Threaded Tee | Inconel Threaded Equal Tee |
Application of Stainless Steel Socket Weld Fittings
- Industrial Boilers
- Power Plants
- Nuclear Plants
- Oil & Gas Industry
- Refineries
- Ship Building
- Heat Exchangers
- Condensers
- Paper & Pulp
- Marine Applications
- Nuclear Power
- Fossil Fuel Power Plants
Price List Of Socket Weld Fitting :
90 degree forged elbow
FOB Price: US $700-1400 / Ton
ASTM A105,3000# NPTF Threaded 90 Degree Forged ELBOW
FOB Price: US $0.2-100 / Piece
Carbon Steel 90 Degree forged elbow
FOB Price: US $700-900 / Ton
Stainless steel 45 degree Forged Elbow/pipe elbow
FOB Price: US $0.5-2000 / Piece
Forged Stainless Steel Threaded Tee ANSI B16.11 3000lb
FOB Price: US $3-30 / Piece
forged tee,3000lbs / 6000lbs (female NPT )
FOB Price: US $3-20 / Piece
Forged High Pressure Threaded Pipe Cross
FOB Price: US $0.5-1000 / Piece
forged carbon steel cross
FOB Price: US $0.1-500 / Piece
forged cross pipe fitting cross
FOB Price: US $0.5-1000 / Piece
threaded full coupling
FOB Price: US $1.5-250 / Piece
threaded full coupling for oilfield
FOB Price: US $1.5-650 / Piece
threaded half coupling
FOB Price: US $0.5-500 / Piece
ANSI B16.11 A105 Threaded Half Coupling
FOB Price: US $0.5-25 / Piece
stainless steel NPT threaded half coupling
FOB Price: US $0.25-1.15 / Piece
A234WP11 Socket Forged Fittings Threaded Reducing Coupling
FOB Price: US $2-1000 / Piece
ASME B16.11 Forged Stainless Steel male threaded Reducing Coupling
FOB Price: US $1-50 / Piece
threaded steel pipe caps
FOB Price: US $700-900 / Metric Ton
Threaded end cap
FOB Price: US $1-9999 / Piece
Threaded hex head bushing
FOB Price: US $0.1-500 / Piece
Hex head bushing – Class 6000 – threaded
FOB Price: US $1-1000 / Piece
Forged High Pressure Pipe Threaded Hex Head Plug
FOB Price: US $0.5-1000 / Piece
Forged A105 Thread Square Head Plug ANSI B16.11 3000LBS
FOB Price: US $0.5-15 / Piece
Square Head Plug square head plug threaded
FOB Price: US $0.1-100 / Piece
round head plug round head plug threaded
FOB Price: US $0.1-100 / Piece
Forged High Pressure Stainless Steel Threaded Union
FOB Price: US $0.5-1000 / Piece
Thread hex nipple
FOB Price: US $0.5-500 / Piece
HIGH PRESSURE stainless steel thread street elbow
FOB Price: US $1-100 / Piece
ISO 4144 threaded street elbow
FOB Price: US $0.1-10 / Piece
Forged High Pressure Fittings Bull Plug Threaded 3000lb 6000lb 9000lb
FOB Price: US $1-500 / Piece
Threaded boss
FOB Price: US $1.3-120 / Piece
Threaded swage nipple
FOB Price: US $1-99999 / Piece
Double thread pipe nipple
FOB Price: US $1-99999 / Piece
Tube thread adapter
FOB Price: US $0.3-2.5 / Piece
Union (Male x Female)
FOB Price: US $0.65-2.50 / Piece
Forged High Pressure Fittings Branch welding outlets
FOB Price: US $1-500 / Piece
90° Elbow Outlet
US $5-100 / Kilogram
Screwed / threaded 45 degree forged tee/lateral
FOB Price: US $1-50 / Piece
Nipple Branch Outlet
FOB Price: US $1-999 / Piece
| Best Offer On Below Stock : | ||||
|
|
|
||
