Threaded / Screwed 90 Deg Elbow
Stockist of Stainless Steel Threaded 90 Deg. Elbow, Forged Threaded Elbow 90 Degree, Screwed Long Radius 90 Degree Elbows, 90° Short Radius Threaded Elbow Dealer in India, Global Supplier of ANSI B16.11 90 Deg Forged Threaded Elbow, ASME B16.11 90 deg Screwed Elbow, 90 Degree Elbow 3000LB Threaded.
Alloy Steel 90 Degree Forged Screwed Pipe Elbow, Nickel Alloy 200 90 Degree Elbow, Forged Threaded 90 Deg. Elbow, ASTM A182 SS 90 Deg Elbows, 90 Degree Elbow Dimensions, Threaded Fittings 90° Elbow, 90 Deg. Forged Screwed Elbow, High Quality 90° Threaded Elbow Manufacturer in Mumbai, India.
Shankh Metals And Alloys Is An ISO: 9001:2008 Certified Company.We Manufacturer Our Products By High Grade Material To Provide Good Quality Threaded / Screwed 90 Deg Elbow To Our Domestic And Overseas Customers. Socket Weld Fitting accomplish a Lot of admiration by our clients owing to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency products like Stainless Steel Threaded 90 Deg Elbow, Carbon Steel Screwed 90 Degree Elbow & Alloy Steel Threaded 90° Elbow. These products are used in various commercial, industrial and automobile industries. We manufacture ANSI B16.11 Forged Threaded / Screwed 90° Elbow using high grade of raw material by implementing most ultra modern technology. These products are clients can avail from us at various sizes, shapes and design as per the requirements.We are one of the top Manufacturers and Suppliers of ASME B16.11 Threaded / Screwed 90° Elbow in Mumbai, India.
Stockholder Of 90° Threaded Elbow, BS3799 Socketweld 90 Degree Elbow Wholesaler, Inconel Forged Screwed 90 Degree Elbow, MSS SP-79 and MSS SP-83 Threaded 90 Deg. Elbow, 90 Degree Elbow 3000LB Threaded, Best Price of Duplex Steel 90 Degree Threaded Elbow, Hastelloy C22 90 Deg. Screwed Pipe Elbow, Copper Nickel 90 Deg Threaded Pipe Elbow Exporter, Alloy 20 90° Screwed Elbow Traders in India.
Table Of Content
- Best Offer On Threaded / Screwed 90 Deg Elbow
- Standard Specification For Threaded / Screwed 90 Deg Elbow
- Material & Grades of Threaded / Screwed 90 Deg Elbow
- ASME B16.9 Threaded / Screwed 90 Deg Elbow Available Types
- Threaded / Screwed 90 Deg Elbow Dimension
- Threaded / Screwed 90 Deg Elbow Application
- Export Destinations For Threaded / Screwed 90 Deg Elbow
- Price List Of Threaded / Screwed 90 Deg Elbow Fittings
Threaded / Screwed 90 Deg Elbow Manufacturer & Supplier In Mumbai

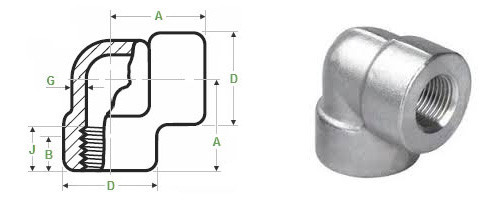

Dimensions of Threaded elbow 90° - NPS 1/2 to 4 - 2000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 33 | 3.18 | 28 | 22 |
| 3/4 | 12.7 | 13.9 | 38 | 3.18 | 33 | 25 |
| 1 | 14.7 | 17.3 | 46 | 3.68 | 38 | 28 |
| 1¼ | 17 | 18 | 56 | 3.89 | 44 | 33 |
| 1½ | 17.8 | 18.4 | 62 | 4.01 | 51 | 35 |
| 2 | 19 | 19.2 | 75 | 4.27 | 60 | 43 |
| 2½ | 23.6 | 28.9 | 92 | 5.61 | 76 | 52 |
| 3 | 25.9 | 30.5 | 109 | 5.99 | 86 | 64 |
| 4 | 27.7 | 33 | 146 | 6.55 | 106 | 79 |
Dimensions of Threaded elbow 90° - NPS 1/2 to 4 - 3000 LBS- ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 38 | 4.09 | 33 | 25 |
| 3/4 | 12.7 | 13.9 | 46 | 4.32 | 38 | 28 |
| 1 | 14.7 | 17.3 | 56 | 4.98 | 44 | 33 |
| 1¼ | 17 | 18 | 62 | 5.28 | 51 | 35 |
| 1½ | 17.8 | 18.4 | 75 | 5.56 | 60 | 43 |
| 2 | 19 | 19.2 | 84 | 7.14 | 64 | 44 |
| 2½ | 23.6 | 28.9 | 102 | 7.65 | 83 | 52 |
| 3 | 25.9 | 30.5 | 121 | 8.84 | 95 | 64 |
| 4 | 27.7 | 33 | 152 | 11.18 | 114 | 79 |
Dmensions of Threaded elbow 90° - NPS 1/2 to 4 - 6000 LBS -ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 46 | 8.15 | 38 | 28 |
| 3/4 | 12.7 | 13.9 | 56 | 8.53 | 44 | 33 |
| 1 | 14.7 | 17.3 | 62 | 9.93 | 51 | 35 |
| 1¼ | 17 | 18 | 75 | 10.59 | 60 | 43 |
| 1½ | 17.8 | 18.4 | 84 | 11.07 | 64 | 44 |
| 2 | 19 | 19.2 | 102 | 12.09 | 83 | 52 |
| 2½ | 23.6 | 28.9 | 121 | 15.29 | 95 | 64 |
| 3 | 25.9 | 30.5 | 146 | 16.64 | 106 | 79 |
| 4 | 27.7 | 33 | 152 | 18.67 | 114 | 79 |
Standard Specification For Forged Threaded / Screwed 90 Deg Elbow
Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8" NB TO 4" NB
Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS
Form : Forged Elbow, 90 Deg Elbow.
Material & Grades of Forged Threaded / Screwed 90 Deg Elbow :
Stainless Steel Forged Threaded / Screwed 90 Deg Elbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Threaded / Screwed 90 Deg Elbow :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Threaded / Screwed 90 Deg Elbow :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Threaded / Screwed 90 Deg Elbow :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Threaded / Screwed 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded / Screwed 90 Deg Elbow :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
ASME B16.11 Forged Threaded / Screwed 90 Deg Elbow Available Types
| Forged Threaded Elbow 90 Degree | Forged Screwed Long Radius 90 Degree Elbows |
| 150 lb. Threaded Fittings Pipe Elbow | Threaded 90° Short Radius Elbow |
| ASME B16.11 90 deg Threaded Elbow | 90 Degree Elbow 3000LB Threaded |
| Stainless Steel 90 Degree Screwed Pipe Elbow Suppliers | SS 90 Deg. Forged Screwed Elbows |
| ANSI B16.11 90 Degree Forged Elbow Dealer | BS 3799 Forged 90 Degree Screwed Elbow Exporter |
| Forged Threaded 90 Deg Elbow Stockholder | Threaded 90° Pipe Elbow Distributors |
| Carbon Steel Threaded 90deg.Elbow | High Quality Threaded 90° Elbow Manufacturer |
| ASTM A182 Threaded Stainless Steel 90 Deg Elbows | Duplex Steel 90° Threaded Pipe Elbow |
| Super Duplex Steel 90 Deg Screwed Elbow | Copper Nickel Threaded 90 Deg Elbow |
| High Nickel Alloy 90° Forged Threaded Elbow | Hastelloy Threaded 90° Pipe Elbow Stockist |
| Titanium 90 Degree Screwed Elbow | Inconel Threaded 90 Deg Pipe Elbow |
Application of Stainless Steel Socket Weld Fittings
- Industrial Boilers
- Power Plants
- Nuclear Plants
- Oil & Gas Industry
- Refineries
- Ship Building
- Heat Exchangers
- Condensers
- Paper & Pulp
- Marine Applications
- Nuclear Power
- Fossil Fuel Power Plants
Price List Of Socket Weld Fitting :
90 degree forged elbow
FOB Price: US $700-1400 / Ton
ASTM A105,3000# NPTF Threaded 90 Degree Forged ELBOW
FOB Price: US $0.2-100 / Piece
Carbon Steel 90 Degree forged elbow
FOB Price: US $700-900 / Ton
Stainless steel 45 degree Forged Elbow/pipe elbow
FOB Price: US $0.5-2000 / Piece
Forged Stainless Steel Threaded Tee ANSI B16.11 3000lb
FOB Price: US $3-30 / Piece
forged tee,3000lbs / 6000lbs (female NPT )
FOB Price: US $3-20 / Piece
Forged High Pressure Threaded Pipe Cross
FOB Price: US $0.5-1000 / Piece
forged carbon steel cross
FOB Price: US $0.1-500 / Piece
forged cross pipe fitting cross
FOB Price: US $0.5-1000 / Piece
threaded full coupling
FOB Price: US $1.5-250 / Piece
threaded full coupling for oilfield
FOB Price: US $1.5-650 / Piece
threaded half coupling
FOB Price: US $0.5-500 / Piece
ANSI B16.11 A105 Threaded Half Coupling
FOB Price: US $0.5-25 / Piece
stainless steel NPT threaded half coupling
FOB Price: US $0.25-1.15 / Piece
A234WP11 Socket Forged Fittings Threaded Reducing Coupling
FOB Price: US $2-1000 / Piece
ASME B16.11 Forged Stainless Steel male threaded Reducing Coupling
FOB Price: US $1-50 / Piece
threaded steel pipe caps
FOB Price: US $700-900 / Metric Ton
Threaded end cap
FOB Price: US $1-9999 / Piece
Threaded hex head bushing
FOB Price: US $0.1-500 / Piece
Hex head bushing – Class 6000 – threaded
FOB Price: US $1-1000 / Piece
Forged High Pressure Pipe Threaded Hex Head Plug
FOB Price: US $0.5-1000 / Piece
Forged A105 Thread Square Head Plug ANSI B16.11 3000LBS
FOB Price: US $0.5-15 / Piece
Square Head Plug square head plug threaded
FOB Price: US $0.1-100 / Piece
round head plug round head plug threaded
FOB Price: US $0.1-100 / Piece
Forged High Pressure Stainless Steel Threaded Union
FOB Price: US $0.5-1000 / Piece
Thread hex nipple
FOB Price: US $0.5-500 / Piece
HIGH PRESSURE stainless steel thread street elbow
FOB Price: US $1-100 / Piece
ISO 4144 threaded street elbow
FOB Price: US $0.1-10 / Piece
Forged High Pressure Fittings Bull Plug Threaded 3000lb 6000lb 9000lb
FOB Price: US $1-500 / Piece
Threaded boss
FOB Price: US $1.3-120 / Piece
Threaded swage nipple
FOB Price: US $1-99999 / Piece
Double thread pipe nipple
FOB Price: US $1-99999 / Piece
Tube thread adapter
FOB Price: US $0.3-2.5 / Piece
Union (Male x Female)
FOB Price: US $0.65-2.50 / Piece
Forged High Pressure Fittings Branch welding outlets
FOB Price: US $1-500 / Piece
90° Elbow Outlet
US $5-100 / Kilogram
Screwed / threaded 45 degree forged tee/lateral
FOB Price: US $1-50 / Piece
Nipple Branch Outlet
FOB Price: US $1-999 / Piece
